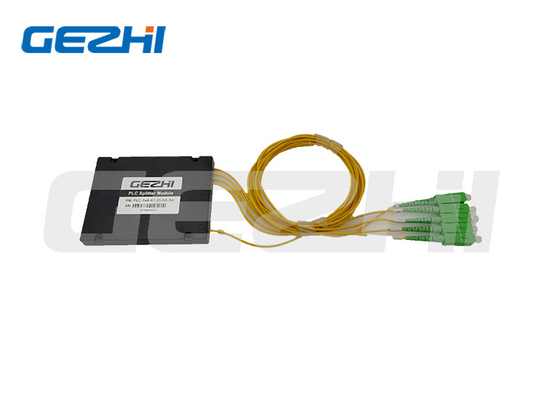

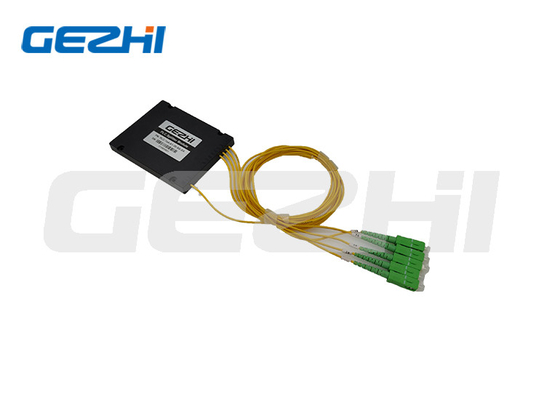

1x4 Passive Fiber Optic Splitter SC/APC ABS Module 1260 - 1650nm

Name: 1x4 Passive Fiber Optic Splitter SC/APC ABS Module 1260 - 1650nm
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: 1x4 PLC Splitter Module
Price: Negotiable USD
Availability: InStock

Brand Name:	GEZHI or OEM
Model Number:	1x4 PLC Splitter Module
MOQ:	1pc
Price:	Negotiable
Delivery Time:	5-8 work days
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Wavelength:

1260-1650nm

Port:

1x4

Connector:

LC/UPC, LC/APC, SC/UPC Etc.

Package:

Stainless Steel Tube

Fiber Type:

G657A1

Application:

GEPON

Packaging Details:

Paper box

Supply Ability:

100000Channel per month

Highlight:

1x4 Passive Fiber Optic Splitter

SC APC Passive Fiber Optic Splitter

ABS Module Passive Optical Splitter

Product Description

Specifications

Parameter		1xN PLC Splitter Specification
Operating Wavelength (nm)		1260 ~ 1650
Type		1x2	1x4	1x8	1x16	1x32	1x64
Insertion Loss (dB)	Typical	3.6	6.8	10.0	13.0	16.0	19.5
Insertion Loss (dB)	Max	3.8	7.1	10.3	13.5	16.5	20.5
Uniformity (dB)	Typical	0.4	0.5	0.5	1.0	1.0	2.5
Uniformity (dB)	Max	0.6	0.6	0.8	1.2	1.5	2.5
PDL(dB)Max	Typical	0.1	0.1	0.1	0.2	0.2	0.2
PDL(dB)Max	Max	0.15	0.15	0.25	0.3	0.3	0.3
Wavelength department loss(dB)	Typical	0.1	0.1	0.1	0.3	0.4	0.7
Wavelength department loss(dB)	Max	0.2	0.3	0.4	0.6	0.8	1.0
Temperature department loss	Typical	0.3	0.3	0.3	0.4	0.4	0.4
Temperature department loss	Max	0.5	0.5	0.5	0.5	0.5	0.5
Directivity (dB) Min		55
Return Loss (dB) Min		55(50)
Operating Temperature (°C)		-40~ +85
Storage Temperature (°C)		-40 ~ +85
Fiber length		1m or Customized
Fiber Type		G657A
Connector Type		Customized
PLC Splitter Bare Fiber (mm)		4x4x40	4x4x40	4x4x40	4x7x50	4x7x50	4x12x60
PLC Splitter Blockless (mm)		4x4x40	4x7x60	4x7x60	4x12x60	6x20x80	6x40x100
PLC Splitter Module (mm)		100x80x10	100x80x10	100x80x10	120x80x18	120x80x18	141x115x18
PLC-splitter-rack-mountable(mm)		19’1U 2U Rack-Mount Box, LGX Box, ODF Box

Product overview

1x4 SC/APC PLC ABS Module Passive Optical Fiber 1260/1650 splitter

1x4PLC Splitter Module

Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical
waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting. Gezhi Photonics provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE-2001 and GR-1221-CORE-1999 requirements.

Product Features

Low Insertion loss

Low PDL

Compact Design

Good channel-to-channel uniformity

Wide Operating Wavelength: From 1260nm to 1650nm

Wide Operating Temperature: From -40℃ to 85℃

High Reliability and Stability

High Quality & Stability Material

High Reliable & Stable quality
PLC Chip

G657A1 Fiber with min10mm bend radius allow tighter or bending

zirconia ceramic ferrules
