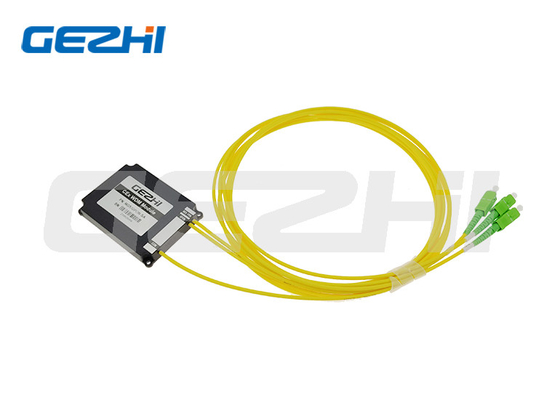

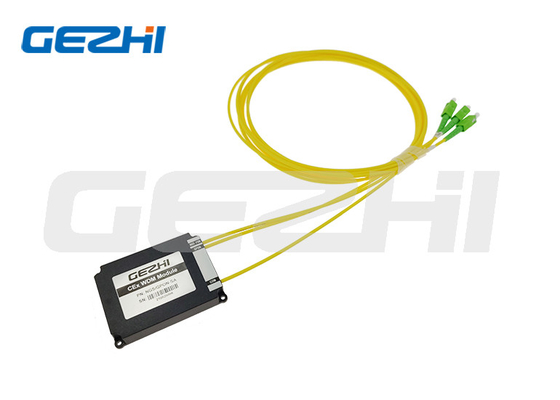

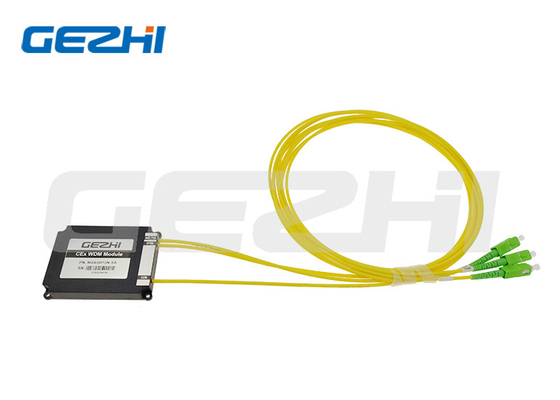

CEX WDM1R multiplexer GPON XGS-PON FWDM module optical filter 1270/1577nm 1310/1490nm

Name: CEX WDM1R multiplexer GPON XGS-PON FWDM module optical filter 1270/1577nm 1310/1490nm
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: CEX WDM1R multiplexer GPON
Price: Negotiable USD
Availability: InStock

Brand Name:	GEZHI or OEM
Model Number:	CEX WDM1R multiplexer GPON
MOQ:	1pc
Price:	Negotiable
Payment Terms:	Western Union, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Use:

NGPON

Wavelength:

GPON, XGS-PON

Center Wavelength:

1270/1577; 1310/1490

Fiber Connector:

LC/UPC, FC/APC, SC/APC Etc.

Type:

FTTx Solutions

Warranty Time:

3 Years

Application:

Data Center

Channel Number:

4, 8, 16 Or Customized

Fiber Type:

SMF-28e

Packaging Details:

Paper box

Supply Ability:

5000pcs per month

Highlight:

1310/1490nm CEX WDM1R

1270/1577nm CEX WDM1R

1270/1577nm CEX WDM1R multiplexer

Product Description

Product Overview

The Coexistence Element (CEx) of xWDM/xPON multiplexer is a single WDM device to combine current G-PON FTTH services with emerging XGS-PON and Next Generation NG-PON2 technologies. Additional provisioning wavelengths with the Coexistence Element include RF, Point to Point (PtP), and OTDR monitoring.Its compliant with ITU-T G.984.5.

High quality components ensure very high operation stability of xWDM/xPON multiplexers in the whole spectral range and perfect thermal stability. GEZHI offers a flexible platform of Coexistence Element products to fit a specific PON deployment that is most cost-effective to your needs – Depending on your requirements each CEx can be fully complemented with all PON services or with only the services requested. Premium optical components and high-quality connectivity ensure superior performance, the lowest loss, and robust network reliability.

FEATURES

Low Insertion Loss

High channel isolation

RoHS Compliant

Available with customized functionalities

APPLICATIONS

WDM systems

PON SYSTEM

FTTH access networks

optical telecommunication networks

Picture Details

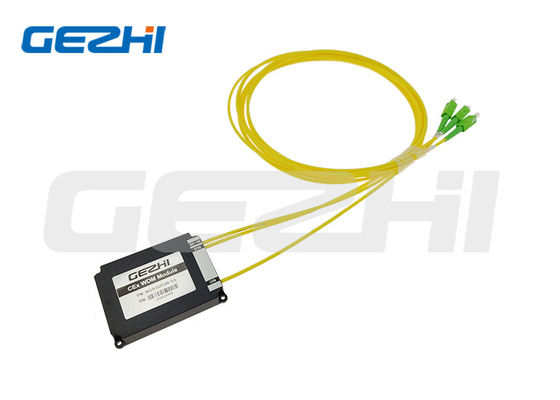

CEX WDM1R multiplexer GPON XGS-PON FWDM module optical filter 1270/1577nm 1310/1490nm 0

Wavelength of the Coexistence Elemet (CEx) Multiplexer

Protocl/Service	Wavelength
G-PON Band	1290~1330, 1480~1500nm
XGS-PON Band	1260~1280, 1575~1580nm
NG-PON2 Band	1524~1544, 1596~1625
RF Video Band	1540~1565nm
PtP WDM-PON Band	1610~1625nm
OTDR Monitor Band	1640 - 1660nm

Specification

CEx Multiplexer	Protocl/Service	Spectral Range	Max Insertion Loss	Isolation
CEx01	GPON	1290-1330 & 1480-1500nm	0.8dB	≥30dB
CEx01	NGA	1260-1280 & 1572-1650nm	1.0dB	≥16dB
CEx02	GPON	1290-1330 & 1480-1500nm	0.8dB	≥30dB
CEx02	XGS-PON	1260-1280 & 1575-1580nm	1.1dB	≥30dB
CEx03	GPON	1290-1330 & 1480-1500nm	0.8dB	≥30dB
	XGS-PON	1260-1280 & 1575-1580nm	1.1dB	≥30dB
	NG-PON2	1524-1544 & 1596-1625nm	1.4dB	≥16dB
CEx04	GPON	1290-1330 & 1480-1500nm	0.8dB	≥30dB
	XGS-PON	1260-1280 & 1575-1580nm	1.1dB	≥30dB
	NG-PON2	1524-1544 & 1596-1625nm	1.4dB	≥25dB
CEx05	GPON	1290-1330 & 1480-1500nm	0.8dB	≥30dB
	XGS-PON	1260-1280 & 1575-1580nm	1.1dB	≥30dB
	RF Video	1540-1565nm	1.4dB	≥30dB
CEx06	GPON	1290-1330 & 1480-1500nm	0.8dB	≥30dB
	XGS-PON	1260-1280 & 1575-1580nm	1.1dB	≥30dB
	RF Video	1540-1565nm	1.7dB	≥30dB
	OTDR Monitor	1640-1660nm	1.4dB	≥30dB
CEx07	G-PON	1290-1330 & 1480-1500nm	0.8dB	≥30dB
	XGS-PON	1260-1280 & 1575-1580nm	1.1dB	≥30dB
	NG-PON2	1524-1544 & 1596-1625nm	1.4dB	≥25dB
	RF Video	1540-1565nm	2.0dB	≥30dB
	PtP WDM-PON	1610-1625nm	1.7dB	≥30dB
CEx08	G-PON	1290-1330 & 1480-1500nm	0.8dB	≥30dB
	XGS-PON	1260-1280 & 1575-1580nm	1.1dB	≥30dB
	NG-PON2	1524-1544 & 1596-1625nm	1.4dB	≥25dB
	OTDR Monitor	1640-1660nm	1.7dB	≥30dB
	PtP WDM-PON	1610-1625nm	2.0dB	≥30dB
	RF Video	1540-1565nm	2.3dB	≥30dB

Note: Customized Specification is available.

The above specifications do not include connector loss.

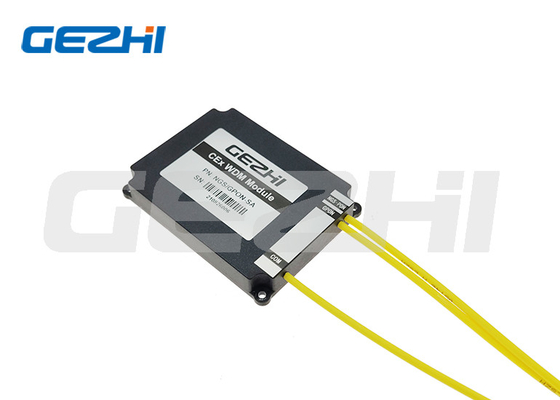

CEx Multiplexer Module ABS Box Package

CEx Multiplexer Module Rackmount Package

FAQ

Q1:Can I have a sample order? What is your MOQ?

A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available.  Also Mixed samples are acceptable.

Q2: What's the Lead time?

A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with our sales representative. But we keep stock for some products, could ship 1-3 days after receiving payment.

Q3: What are the payment terms?

A3: Payment term: T/T, Paypal, Western union,cash payment, ALI etc.

Q4: What is your warranty time

A4: 3 years' warranty.

Q5: Could I use our own logo, label and package?

A5: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package.
