| Brand Name: | GEZHI or OEM |
| Model Number: | CEx-GPON+XGS-PON |
| MOQ: | 1pc |
| Price: | Negotiable |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T, Western Union |

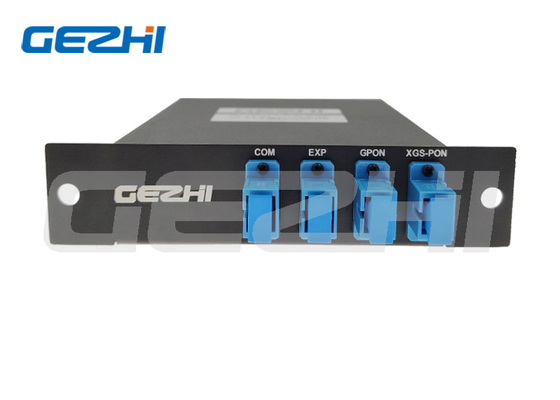

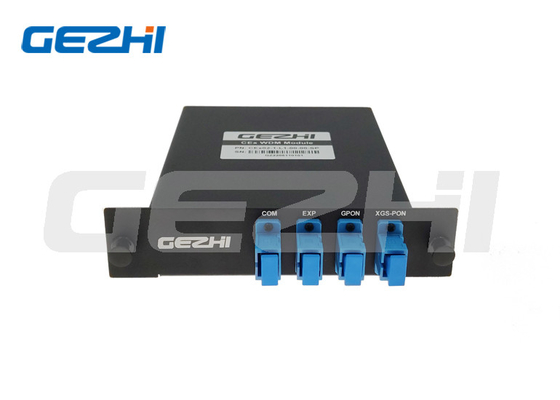

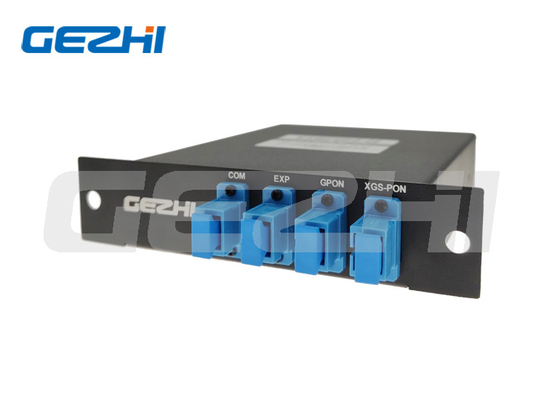

WDM1R GPON 1310/1490 XGS-PON 1270/1577nm Filter WDM Multiplexer Cassette
Describtion of WDM1R GPON / XGS-PON Filter WDM Multiplexer
GEZHI Photonics’s WDM1r Series is designed for Next Generation Passive Optical Networks (NG-PON), a new optical access system that coexists with GPON on the same ODN. Our WDM1r devices, including GPON, Video, and OTDR, are
designed to accommodate NGPON1 and NGPON2 TWDM wavelengths to maximize the density and enhance the speed of optical distribution network.
Features of WDM1R GPON / XGS-PON Filter WDM Multiplexer
Applications of WDM1R GPON / XGS-PON Filter WDM Multiplexer
GEZHI Photonics supply customzied WDM1R Multiplexer with GPON/XGS-PON/RF Video/NG-PON2/OTDR etc. with different package size like ABS box, LGX cassette, 19” 1U Rackmount, 3 slot 1U Rackmount, 12 slot 3U Rackmount etc.
For more detail information of WDM1R GPON / XGS-PON Filter WDM Multiplexer, please call or email to us. We will offer detail specifications of the Coexistence Element WDM mux module.
Specification of WDM1R GPON / XGS-PON Filter WDM Multiplexer
| Parameter | Unit | WDM1R Multiplexer |
| Channel Number | / | 3 |
| Center Wavelength | nm |
GPON Port: 1290~1330&1480~1500 |
| Insertion Loss | dB | ≤1.2 |
| Isolation | dB | ≥30 |
| Returen Loss | dB | ≥45 |
| Directivity | dB | ≥50 |
| Polarization Dependent Loss | dB | ≤0.2 |
| PMD | ps | ≤0.15 |
| Power Handling | mW | ≤500 |
| Operating Temperature | ℃ | -5 to +75 |
| Storage Temperature | ℃ | -40 to +85 |
FAQ
Q: Are you trading company or manufacturer?
A: We are original manufacturer Of WDM1R GPON / XGS-PON Filter WDM Multiplexer. We can do OEM/ODM business.
Q: How long is your delivery time?
A: General delivery time: 5~14 days.
Q: What is your terms of payment?
A: 100% T/T inadvance.
Q: What is the warranty ?
A: 3years warrangty time.
Q: How can I get your catalogue and price list?
A: Please let us know your email or contact us from website directly for our catalogue and price list;
Any questions,please feel free to contact us,we will provide quality services for you
|
|
