| Brand Name: | GEZHI or OEM |
| Model Number: | CEX Module |
| MOQ: | 1pc |
| Price: | Negotiable |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T, Western Union |

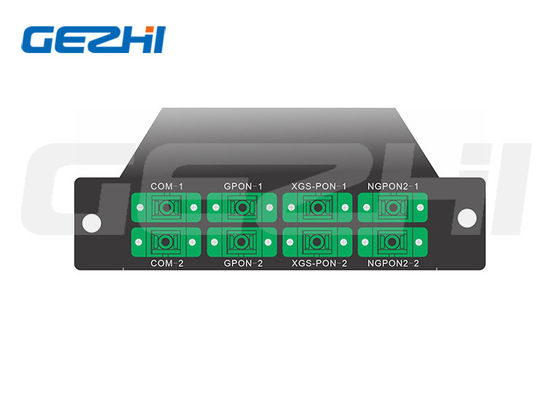

CEx WDM-PON Modules for GPON, XGS-PON, NG-PON2
The Dual Fiber Coexistence Element CEx Module is A single WDM device used to combine current G-PON FTTH services with emerging XGS-PON and Next Generation NG-PON2 technologies.
GEZHI offeres a full range of xWDM products and this WDM-PON moudle is included in the range which meets GR-1209-CORE and GR-1221-CORE standard.
Detail Wavelength of Channel:
|
Features |
Applications |
|
|
Specification
| Type | CEX | |
| Channel Number | / | 3 |
| Operating Wavelength | nm |
GPON Port: 1290~1330&1480~1500 XGS-PON Port: 1260~1280&1575~1580 NGPON-2 Port: 1524~1544&1596~1625 |
| Insertion Loss | dB | ≤1.1 |
| Isolation | dB | >30 |
| Polarization Dependent Loss | dB |
≤0.1 |
| Polarization Mode Dispersion | dB |
≤0.1
|
| Wavelength thermal stability | nm/℃ | ≤0.002 |
| Insertion loss thermal stability | dB/℃ | ≤0.005 |
| Directivity | dB | ≥50 |
| Return loss | dB | ≥50 |
| Operating temperature | ℃ |
-5~+75
|
| Storage temperature | ℃ | -40~+85 |
| Package Size | mm | customized |
Ordering Information:
| CEX | Configuration | Package Type | Cable Type | Fiber Length | Connector |
| 1=GPON+XGS-PON+NGPON-2 |
M=Mux D=Demux A=Mux+Demux |
A1=ABS box 100x80x10mm A2=ABS box 120x80x18mm A3=ABS box140x115x18mm L1=LGX 129*29*130mm L2=LGX insert in 2slot Rack L4=LGX insert in 4slot Rack R1=19" 1 U Rack R2=2slot 19″1U Rack R4=4slot 19″1U Rack X=Customized |
00=None 09=900um loose tube 20=2.0mm 30=3.0mm |
00=None 05=0.5m 10=1.0m X=Customized |
00=none LP=LC/UPC LA=LC/APC SP=SC/UPC SA=SC/APC FP=FC/UPC FA=FC/APC X=Customized |
Gezhi is a factory of fiber optical passive product located in Shenzhen, China. We comply with ISO9001 standard and all our product comply with RoHS. We produce Optical Switch, WDM, AWG product with stable performance and competetive price.
|
|
