| Brand Name: | GEZHI or OEM |
| Model Number: | Filter WDM |
| MOQ: | 1pc |
| Price: | Negotiable |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T, Western Union |

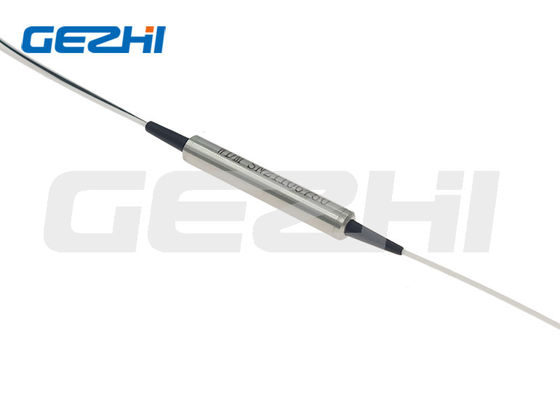

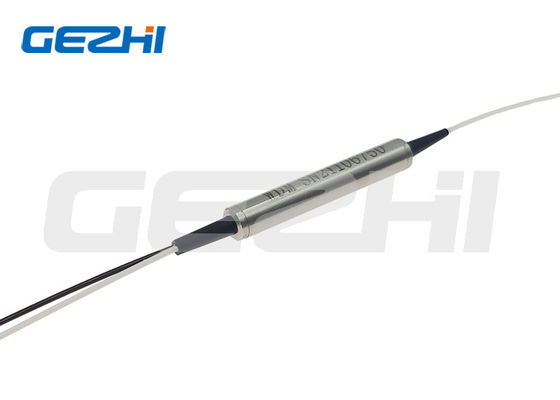

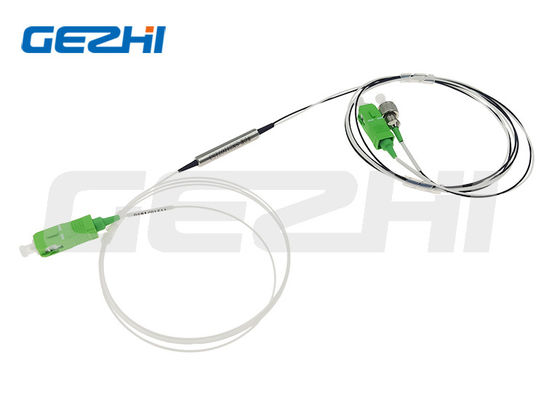

Optical Fiber Filter WDM FTTX 1625 / 1650nm for OTDR test
The optical filter WDM is a device that is used for wavelength selection, which can select required wavelengths from a large number of wavelengths and reject the addition wavelengths. It can used in wavelength selection, the noise filter of the optical amplifier, gain equalization, optical multiplexing / demultiplexing.
Optical Fiber Filter WDM FTTX 1625nm is made by special optical components and advanced technology, it can deeply let 1260-1590nm wavelength pass but efficiently reflect 1600-1670nm wavelength. This product is mainly used in optical fiber on-line testing. It is ideal component of 1625/1650nm optical fiber filtering.
|
Features |
Applications |
|
|
Specification
| Parameter | T1625/1650nm |
|---|---|
| Operating Wavelength Range (Pass Band) | T1600~1670nm |
| Operating Wavelength Range (Reflect Band) | 1260~1590nm |
| Insertion Loss (Pass Band) | ≤ 0.8 dB |
| Insertion Loss (Reflect Band) | ≤ 0.6 dB |
| Isolation (Pass Band) | ≥ 50 dB |
| Isolation (Reflect Band) | ≥ 35 dB |
| Ripple | ≤ 0.3 dB |
| Return Loss | ≥ 50 dB |
| Directivity | ≥ 50 dB |
| Maximum Power Handling | 300 mW |
| Operating Temperature | -5°C ~ +70°C |
| Storage Temperature | -40°C ~ +85°C |
| Package Dimensions - 900µm Loose Tube or bare fiber | 5.5mm (Φ) x 35.0mm (L) |
Note1: All values specified are without connectors.
Note2: Higher performance specifications available upon request.
Ordering Information:
| Wavelength | Package Spec | Fiber Type | Fiber Diameter | Fiber Length | Connector |
|
T1625/1650: T1625/1650R13/14
|
0=Glass Tube L1=LGX chassis |
9=9/125 X=Others |
25=250um 90=900um 20=2.0mm 30=3.0mm X=Others |
05=0.5m 10=1.0m 15=1.5m X=Others |

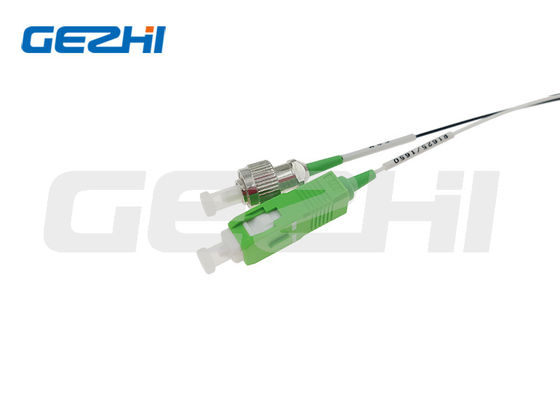

00=none LP=LC/UPC LA=LC/APC SP=SC/UPC SA=SC/APC FP=FC/UPC FA=FC/APC X=Customized |
|
|
