1x8 Passive DWDM Splitter Module dual fiber with 1% Monitor Port
GEZHI’ Optical Passive DWDM is a low loss, high density passive optical module which based on the thin film coating technology with C21 to C28 wavelength with a express port for future development and Fibre Extender and a monitor port to monitor the equipment status .

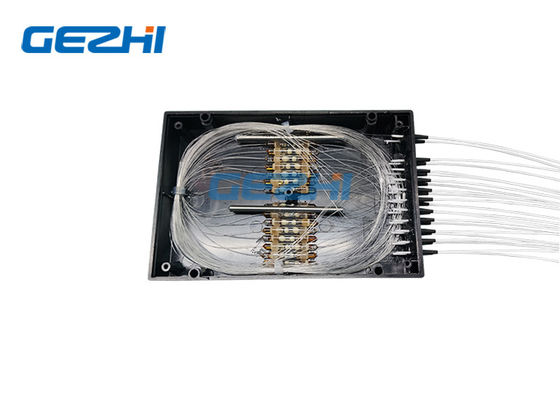

This module is packed a Mux and Demux in a small ABS box: 120x80x18mm for dual fiber application. As the Low Insertion loss, high stability and reliability, its well application in FTTX, WDM Network, Data Center etc.
Features
ITU Grid
Low Insertion Loss
Monitor Port
High Stability and Reliability
Applications
FTTX
Data Center
WDM Network
Long-haul transport
CATV Systems
Specification
| Parameter | Unit | 8+1CH DWDM Mux+Demux | |
| Channel Number | -- | 8+1CH | |
| Operation Wavelength | nm | C21~C28+EXP+1% Monitor Port | |
| Channel Central Wavelength | nm | ITU-T Grid @DWDM | |
| Channel Passband | nm | 0.8 (100Ghz) | |
| Insertion Loss @PB | dB | <2.8 | |
| Mux 1% monitoring | dB | <24.5 | |
| Demux 1% monitoring | dB | <23 | |
| Isolation @Adjacent Channel | dB | >30 | |
| Isolation @Non-adjacent Channel | dB | >34 | |
| Isolation @Reflect Channel | dB | >15 | |
| Passband Ripple | dB | <0.5 | |
| Polarization Dependent Loss | dB | <0.15 | |
| Polarization Mode Dispersion | ps | <0.1 | |
| Directivity & Return Loss | dB | Directivity: >50 Return Loss:>45 | |
| Power Handling | mW | <500 | |
| Connector | -- | LC/UPC or customized | |
| Fiber Type | -- | SMF-28e or Customized | |
| Operating Temperature | ℃ | -20 ~ +70 | |
| Storage Temperature | ℃ | -40 ~ +85 | |
| Package Dimension | mm | ABS box 120x80x18 | |
