| Brand Name: | GEZHI or OEM |
| Model Number: | DWDMA4SLOT |
| MOQ: | 1pc |
| Price: | Negotiable |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T, Western Union |

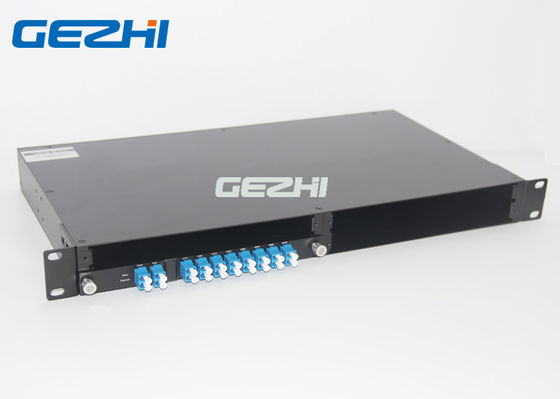

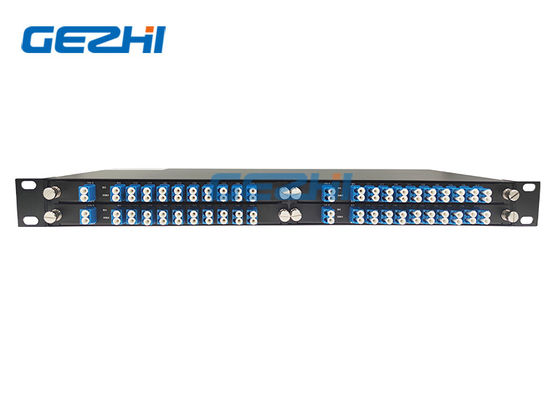

1% Monitor 100Ghz 8CH DWDM Mux Demux plug in module in 4slot Rack Chassis
This DWDM Module launched by GEZHI Photonics is based on the thin film coating technology. Its with C21 to C28 wavelength and Express Port for future development & Fibre Extender and a monitor port to monitor the equipment status.
GEZHI's DWDM Module offers an high channel isolation WDM solution for data centers and Metro access applications. Its built a 8CH DWDM Mux and Demux in a LGX cassette, then insert 4cards LGX cassette in a 19" 1U Rackmount. The DWDM Module is ideal for long-haul transport of fiber optic singals all over a dual fiber.
Features
Low Insertion Loss
Monitor Port
High Stability and Reliability
4-slot 19" 1U Rackmount to save place
Applications
FTTX
Data Center
Long-haul transport
WDM Network
Specification
| Parameter | Unit | 8+1CH DWDM Mux+Demux | |
| Channel Number | -- | 8+1CH | |
| Operation Wavelength | nm | C21~C28+Upgrade+1% Monitor Port | |
| Channel Central Wavelength | nm | ITU-T Grid @DWDM | |
| Channel Passband | nm | 0.8 (100Ghz) | |
| Insertion Loss @PB | dB | <2.8 | |
| Mux 1% monitoring | dB | <24.3 | |
| Demux 1% monitoring | dB | <21.5 | |
| Isolation @Adjacent Channel | dB | >30 | |
| Isolation @Non-adjacent Channel | dB | >40 | |
| Passband Ripple | dB | <0.5 | |
| Polarization Dependent Loss | dB | <0.15 | |
| Polarization Mode Dispersion | ps | <0.1 | |
| Directivity & Return Loss | dB | Directivity: >50 Return Loss:>45 | |
| Power Handling | mW | <500 | |
| Connector | -- | LC/UPC or customized | |
| Fiber Type | -- | SMF-28e or Customized | |
| Operating Temperature | ℃ | -20 ~ +70 | |
| Storage Temperature | ℃ | -40 ~ +85 | |
| Package Dimension | mm | 4slot 19" 1U Rackmount | |
8CH DWDM Mux & Demux Module + Monitoring + Upgrade Port CWDM Module in 2-slot 1U Rack Mount
8CH DWDM Mux Demux Module Dual Fiber
GEZHI Photonics Co.,ltd is a factory mainly produce DWDM, CWDM, AWG, Optical Switches and other passive components.
We are focus on the High Quality.
Video
|
