| Brand Name: | GEZHI or OEM |
| Model Number: | 8CHDWDM-MD-LGX |
| MOQ: | 1pc |
| Price: | Negotiable |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T, Western Union |
8CH low loss DWDM system Duplex Multiplexers and Demultiplexers LGX Box
GEZHI’ 8CH low loss DWDM system Duplex Multiplexers and DemultiplexersLGX Box is a low insertion loss, high density passive optical module which based on the thin film coating technology with C53 to C60 wavelength. The 8CH low loss DWDM system Duplex Multiplexers and DemultiplexersLGX Box offers an high channel isolation WDM solution for data centers and Metro access applications. Its package a 8CH DWDM mux and 8CH DWDM Demux module in a plug-in LGX Cassette with LC/UPC adaptor. The 8CH low loss DWDM system Duplex Multiplexers and DemultiplexersLGX Box is ideal for long-haul transport of fiber optic singals all over a dual fiber.
|
Features |
Applications |
|
|
Specification
| Parameter | Unit | 8ch low loss DWDM equipment | |
| Channel Number | -- | 8 Channel | |
| Operation Wavelength | nm | C53~C60 | |
| Channel Central Wavelength | nm | ITU-T Grid @DWDM | |
| Channel Passband | nm | 0.8 (100Ghz) | |
| Insertion Loss @PB | dB | <2.5 | |
| Isolation @Adjacent Channel | dB | >30 | |
| Isolation @Non-adjacent Channel | dB | >40 | |
| Isolation @Reflect Channel | dB | >15 | |
| Passband Ripple | dB | <0.5 | |
| Polarization Dependent Loss | dB | <0.15 | |
| Polarization Mode Dispersion | ps | <0.1 | |
| Directivity & Return Loss | dB | Directivity: >50 Return Loss:>45 | |
| Power Handling | mW | <500 | |
| Connector | -- | LC/UPC | |
| Fiber Type | -- | SMF-28e or Customized | |
| Operating Temperature | ℃ | -20 ~ +70 | |
| Storage Temperature | ℃ | -40 ~ +85 | |
| Package Dimension | mm | LGX cassette | |
8CH low loss DWDM system Duplex Multiplexers and Demultiplexers LGX Box filter cascading

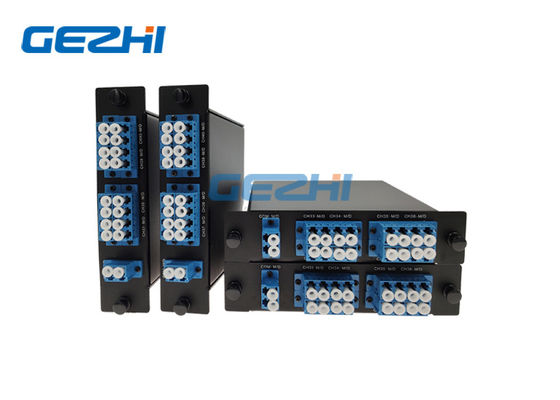

8CH DWDM Mux Demux modules Plug-in LGX box
8 Channels DWDM multiplexer modules tansimission over dual fiber
Video
|
