| Brand Name: | GEZHI or OEM |
| Model Number: | 5GDWDM-OMUX-12CH |
| MOQ: | 1pc |
| Price: | Negotiable |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T, Western Union |

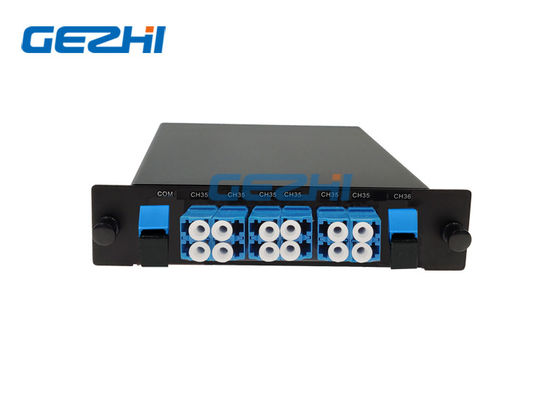

12 Channels 5G DWDM OMUX COT & RT Modules
GEZHI's 12 Channels 5G DWDM OMUX COT & RT Modules based on TFF technology with 12 channels which is suitable for long-distance, large-capacity trunk network, or ultra-large capacity MAN core nodes. This 12 Channels 5G DWDM OMUX COT & RT Modules consist by Central Office Terminal (COT) and Remote Terminal (RT). GEZHI 12 Channels 5G DWDM OMUX COT & RT Modules features with ultra low loss and super thermal stability, and high reliability, thereby enabling it to be a high capacity, low cost solution for DWDM system or WDM PON network applications.
|
Features |
Applications |
|
|
Specification
| Parameters | Unit | 5G DWDM OMUX | ||
| COT | RT | |||
| Central Wavelength | nm |
C26~C37 1556.55/1555.75/1554.94/1554.13/1553.33/1552.52 1551.72/1550.92/1550/12/1549.32/1548.51/1547.72 |
||
| Insertion Loss | C26 1556.44~1556.66 | dB | <2.9 | <1.8 |
| C27 1555.64~1555.86 | dB | <2.7 | <1.9 | |
| C28 1554.83~1555.05 | dB | <2.5 | <2.0 | |
| C29 1554.02~1554.24 | dB | <2.3 | <2.2 | |
| C30 1553.22~1553.44 | dB | <2.1 | <2.4 | |
| C31 1552.41~1552.63 | dB | <2.0 | <2.5 | |
| C32 1551.61~1551.83 | dB | <2.5 | <2.0 | |
| C33 1550.81~1551.03 | dB | <2.4 | <2.1 | |
| C34 1550.01~1550.23 | dB | <2.2 | <2.3 | |
| C35 1549.21~1549.43 | dB | <2.0 | <2.5 | |
| C36 1548.40~1548.62 | dB | <1.9 | <2.7 | |
| C37 1547.61~1547.83 | dB | <0.8 | <2.9 | |
|
Express 1262.5~1547.03 to 1557.25~1617.5 |
dB | <0.9 | <0.9 | |
| Link Insertion Loss | Channel Port | dB | <4.9 | |
| EXP Port | dB | <2.0 | ||
| Adjacent Channel Isolation | dB | >25 | ||
| Non-Adjacent Channel Isolation | dB | >35 | ||
| EXP Channel Isolation | dB | >10 | ||
| Return Loss | dB | >50 | ||
| Directivity | dB | <50 | ||
| Operating Temperature | °C | -30 to +85 | ||
| Connector Type | / | COM&EXP: SC/UPC; Other: LC/UPC | COM&EXP: SC/APC; Other: LC/APC | |
12 Channels 5G DWDM OMUX COT & RT Modules
High Quality TFF Technology
Adopting high quality TFF technology, this 12 Channels 5G DWDM OMUX COT & RT Modules provides low insertion loss in a compact package.
Industrial Temperature
The Optical Passive 12 Channels 5G DWDM OMUX COT & RT Modules supports industrial temperature -30 ℃ ~ +85 ℃ that is suitable for outdoor application.
Customizable
The LGX module type has a variety of package sizes and wavelength options. It can also be customized according to customer requirements, such as mini size, one-way or two-way, upgrade port, etc.
