| Brand Name: | GEZHI or OEM |
| Model Number: | 16CH-CWDM-M-1RU |
| MOQ: | 1pc |
| Price: | Negotiable |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T, Western Union |

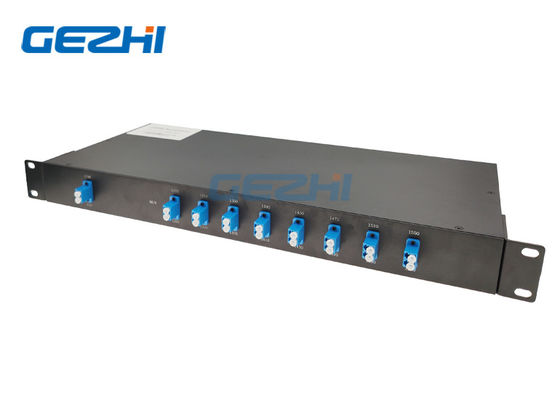

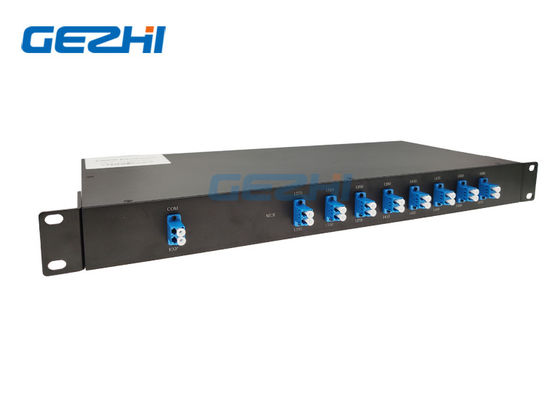

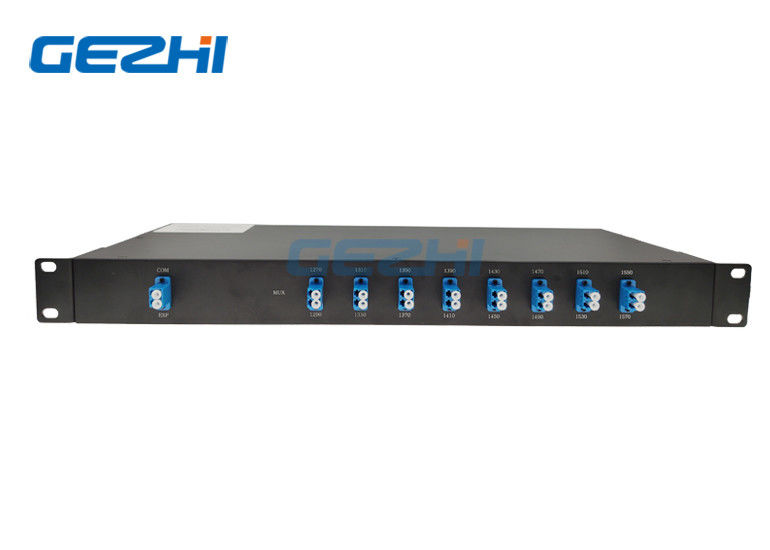

16ch low loss CWDM filter Multiplex and Demultiplex 1270-1590nm
16ch low loss CWDM filter Multiplex and Demultiplex 1270-1590nm is an optical multiplexer that can multiplex up to 18 CWDM sources on a single optical fiber for the CWDM wavelength range with only 3.5dB link insertion loss.
The 16ch low loss CWDM filter Multiplex and Demultiplex 1270-1590nm has high channel isolation and can therefore be used in a bi-directional system. The 16ch low loss CWDM filter Multiplex and Demultiplex 1270-1590nm can be used as a multiplexer or de-multiplexer and uses as a standalone 19inch 1U RackMount. The 16ch low loss CWDM filter Multiplex and Demultiplex 1270-1590nm can be used together with CWDM SFP to transmit 18 signals over a single fiber.
|
Features |
Applications |
|
|
Specification
|
Parameter |
Unit |
16CH CWDM | ||
| Mux | Demux | |||
| Channel Wavelength | nm | 1270~1590nm | ||
|
Center wavelength Accuracy |
nm | ±0.5 | ||
| Channel Spacing | nm | 20 | ||
|
Channel Passband (@-0.5dB bandwidth |
nm | >14 | ||
| Max Insertion Loss | dB | <4.5 or with Skip <3.5 | <4.5 or with Skip <3.5 | |
| Channel Ripple | dB | 0.3 | ||
|
Isolation |
Adjacent | dB | >30 | |
| Non-adjacent | dB | >40 | ||
|
Inertion Loss Temperature Sensitivity |
dB/℃ |
<0.005 |
||
|
Wavelength Temperature Shifting |
nm/ ℃ |
<0.002 | ||
|
Polarization Dependent Loss |
dB | <0.1 | ||
|
Polarization Mode Dispersion |
dB | <0.1 | ||
| Directivity | dB | .>50 | ||
| Return Loss | dB | >45 | ||
| Maximum Power Handling | mW | 300 | ||
| Opterating Temperature | ℃ | -5~+75 | ||
| Storage Temperature | ℃ | -40~85 | ||
| Package dimension | mm | 19" 1U Rack Mount | ||
Note: 1. Customization is available.
2. Specified with connector
Rack Mountable 16CH CWDM Mux equipment Filter Cascading
16ch low loss CWDM filter Multiplex and Demultiplex 1270-1570nm
16 Channel CWDM Splitter Mux/Demux Equipment Solution
