| Brand Name: | GEZHI or OEM |
| Model Number: | 1x2-DWDM-100G |
| MOQ: | 1pc |
| Price: | Negotiable |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T, Western Union |

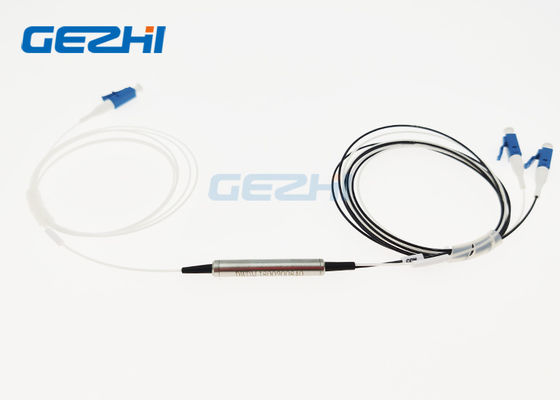

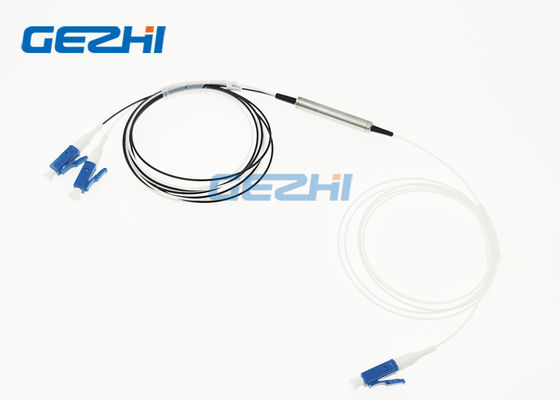

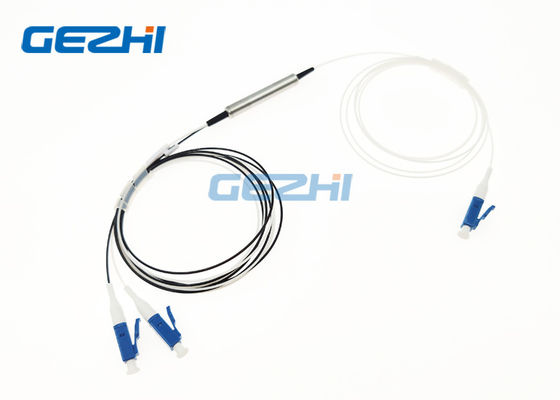

100Ghz 1x2 Passive Optical DWDM filter add/drops device
GEZHI 100Ghz 1x2 Passive Optical DWDM filter utilizes thin film coating technology and proprietary design of non-flux metal bonding micro optics packaging to achieve optical add and drop at the ITU wavelengths. The 100Ghz 1x2 Passive Optical DWDM filter add/drops device provides ITU channel center wavelength, high channel isolation, low insertion loss, wide pass band, low temperature sensitivity and epoxy free optical path. It can be used for wavelength add/drop in telecommunication network system.
|
Features |
Applications |
|
|
Specification
| Parameter | Specification | |
| Channel Wavelength (nm) | ITU 100 GHz Grid | |
| Center wavelength Accuracy (nm) | ±0.05 | |
| Channel Passband (@-0.5dB bandwidth) (nm) | ±0.1 | |
| Channel Spacing (Ghz) | 100 | |
| Pass Channel Insertion Loss (dB) | ≤0.7 | |
| Reflection Channel Insertion Loss (dB) | ≤0.5 | |
| Isolation (dB) | Pass Channel | >30 |
| Reflect Channel | >13 | |
| Polarization Dependent Loss (dB) | <0.20 | |
| Polarization Mode Dispersion | <0.1 | |
| Directivity (dB) | >50 | |
| Return Loss (dB) | >45 | |
| Maximum Power Handling (mW) | 500 | |
| Operating Temperature (℃) | -10~+75 | |
| Storage Temperature (℃) | -40~+85 | |
| Package dimension (mm) | Φ5.5 x L34 | |
100Ghz 1x2 Passive Optical DWDM filter add/drops device
Ordering Information:
| DWDM | X | XX | X | X | X | XX |
|
|
Channel Spacing | Wavelength | Package | Fiber Type | Fiber Length | In/Out Connector |
|
100=100Ghz 200=200Ghz |
1=C1 2=C2 ...... 60=C60 61=C61
|
G=Glass Tube S=Stainless Steel Tube |
1=Bare fiber 2=900um loose tube |
1=1m 2=2m S=Specify
|
0=None 1=FC/APC 2=FC/PC 3=SC/APC 4=SC/PC 5=LC/APC 6=LC/PC S=Specify |
Mechanical
1x2 DWDM Optical Add/drops Device Solutions
|
|
