| Brand Name: | GEZHI or OEM |
| Model Number: | 1x16CH-CWDM |
| MOQ: | 1pc |
| Price: | Negotiable |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T, Western Union |

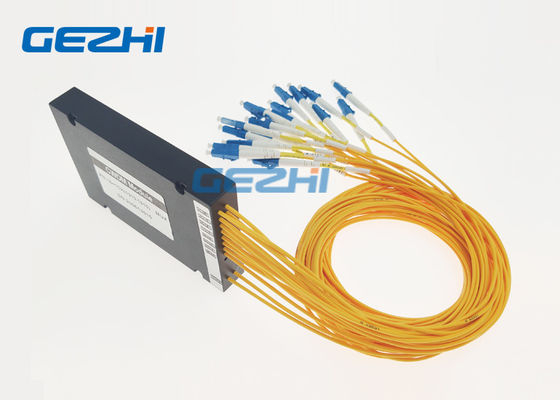

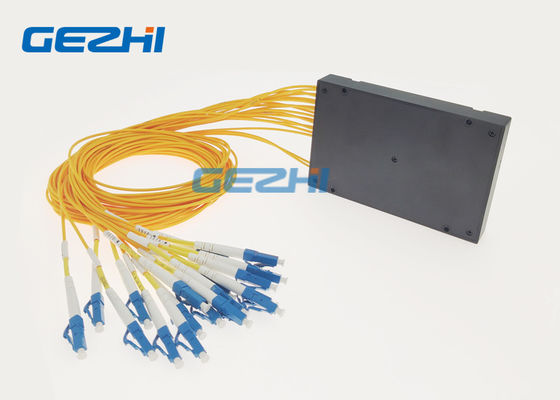

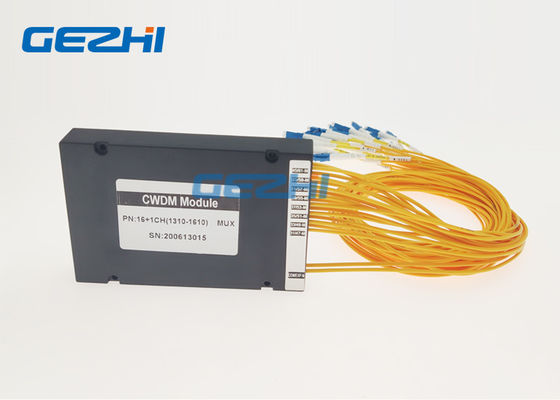

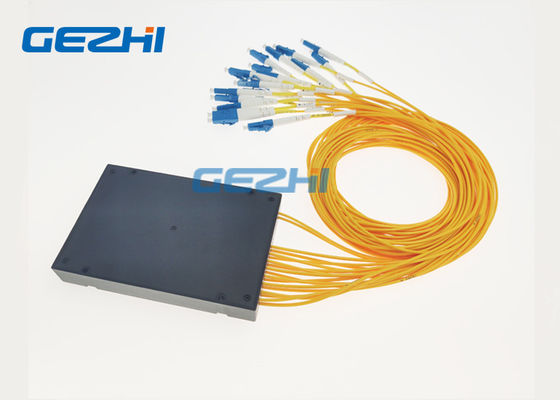

16 Channels Optical Passive CWDM De-multiplexer Modules Bi-directional
GEZHI 16 Channels Optical Passive CWDM De-multiplexer Modules Bi-directional based on dielectric thin-film filter technology which designed for integration in low cost Metro and Access networks.
The 16 Channels Optical Passive CWDM De-multiplexer Modules Bi-directional can solve the shortage of fiber and transparent transmission of business, and reduce the cost of network building. With low-cost, low power consumption and small compact, it is widely used in access layer and metro aggregation to do transmission on a short time.
|
Features |
Applications |
|
|
Specification
|
Parameter |
Unit |
16CH CWDM | ||
| Mux | Demux | |||
| Channel Wavelength | nm | 1310~1610nm | ||
|
Center wavelength Accuracy |
nm | ±0.5 | ||
| Channel Spacing | nm | 20 | ||
|
Channel Passband (@-0.5dB bandwidth |
nm | >15 | ||
| Max Insertion Loss | dB | <4.5 or <3.2 with Skip | <4.5 or <3.2 with Skip | |
| Channel Ripple | dB | 0.3 | ||
|
Isolation |
Adjacent | dB | >30 | |
| Non-adjacent | dB | >40 | ||
|
Inertion Loss Temperature Sensitivity |
dB/℃ |
<0.005 |
||
|
Wavelength Temperature Shifting |
nm/ ℃ |
<0.002 | ||
|
Polarization Dependent Loss |
dB | <0.1 | ||
|
Polarization Mode Dispersion |
dB | <0.1 | ||
| Directivity | dB | >50 | ||
| Return Loss | dB | >45 | ||
| Maximum Power Handling | mW | 300 | ||
| Opterating Temperature | ℃ | -5~+75 | ||
| Storage Temperature | ℃ | -40~85 | ||
| Package dimension | mm | L120x80x18 | ||
Note: 1. Customization is available.
2. Specified with connector
Customized Connector
|
Connector Type Various connector are available, LC/SC/FC, to meet your different needs in various situations.
|
Polish Type UPC is designed for digital signal transport. APC is preferred for RF video signal transport and FTTx applications. |
|
|
16 Channels Optical Passive CWDM De-multiplexer Modules Bi-directional Filter Cascading
16 Channels CWDM Module Solution
