100Ghz 1x4 DWDM OADM west and east Module

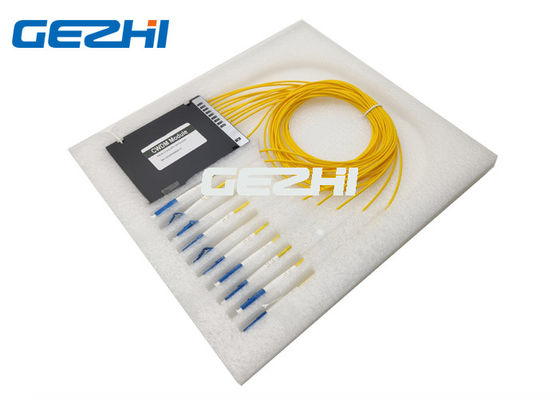

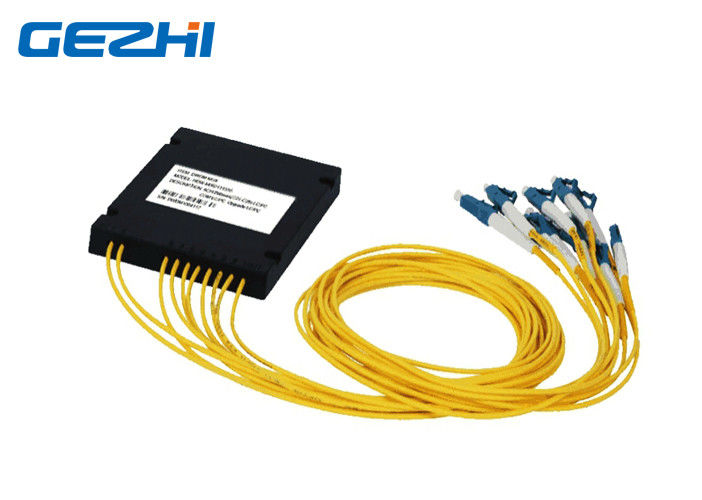

GEZHI’ 100Ghz 1x4 DWDM OADM west and east Module paked in a ABS box module which is a low insertion loss, high density passive optical module and based on the thin film coating technology with C21, C22, C23, C24 wavelength. Its package a 4CH West and East DWDM OADM module in a LC/UPC pigtailed ABS Box. This 100Ghz 1x4 DWDM OADM west and east Module Single Fiber are used in WDM systems for multiplexing and demultiplexing and routing fiber optic signals, selectively adding and dropping individual or sets of wavelength channels from a DWDM stream. The 100Ghz 1x4 DWDM OADM west and east Module Single Fiber are available in dual-sided (East and West) configurations supporting up to four wavelengths on a single fiber.
Features
4 channel East & West
Single Fiber working
Flexible OADM networking
Low Insertion Loss
No electric power required
Applications
CATV Fiber Optic Links
Wavlength Routing
Cellular Application
Long Haul Networks
Metro Networks
Channel Add/Drop
Fiber Optical amplifier
Line Monitoring
Dense WDM Systems
Specification
| Parameter |
Unit |
1x4 DWDM OADM West and East | ||
| Add | Drop | |||
| Channel Wavelength | nm |
C21, C22, C23, C24 |
||
|
Center wavelength Accuracy |
nm | ITU-T Grid @DWDM | ||
|
Channel Passband |
nm | 0.8 (100Ghz) | ||
| Insertion Loss | dB | <1.8 | <1.8 | |
| Channel Ripple | dB | 0.5 | ||
| Isolation | Adjacent | dB | >30 | |
| Non-adjacent | dB | >40 | ||
|
Inertion Loss Temperature Sensitivity |
dB/℃ | <0.005 | ||
|
Wavelength Temperature Shifting |
nm/ ℃ |
<0.002 | ||
|
Polarization Dependent Loss |
dB | <0.15 | ||
|
Polarization Mode Dispersion |
dB | <0.1 | ||
| Directivity | dB | >50 | ||
| Return Loss | dB | >45 | ||
| Maximum Power Handling | mW | 300 | ||
| Opterating Temperature | ℃ | -20~+70 | ||
| Storage Temperature | ℃ | -40~85 | ||
| Package dimension | mm | ABS Box 100x80x10 | ||
100Ghz 1x4 DWDM OADM west and east Module Single Fiber filter cascading
100Ghz 1x4 DWDM OADM west and east Module Single Fiber
Single Fiber DWDM OADM Add and Drop Module
Four channel CWDM add & drop multiplexer for EAST&WEST for bi-directional data transmission over single fibers.
|
|
