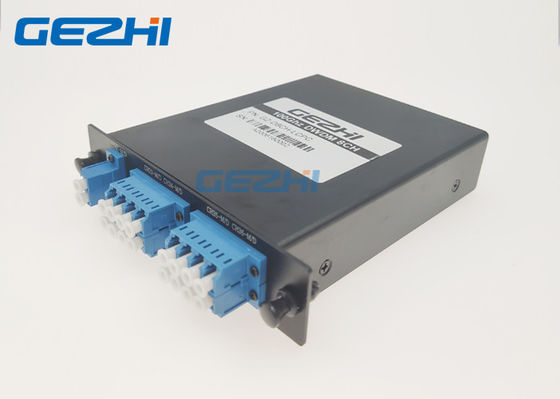

4 Channel West and East DWDM OADM Multiplexer Module in LGX casstte
GEZHI’ 4 Channel West and East DWDM OADM Multiplexer Module in LGX casstte is a low insertion loss, high density passive optical module which based on the thin film coating technology with C33, C34, C35, C36 wavelength. Its package a two 4CH West and East DWDM OADM module in a plug-in LGX Cassette with LC/UPC adaptor. This 4 Channel West and East DWDM OADM Multiplexer Module are used in WDM systems for multiplexing and demultiplexing and routing fiber optic signals, selectively adding and dropping individual or sets of wavelength channels from a DWDM stream. The DWDM OADM modules are available in dual-sided (East and West) configurations supporting up to four wavelengths on two fiber.
Features
Flexible OADM networking
Low Insertion Loss
4 channel East & West
Dual Fiber working
No electric power required
Applications
Wavlength Routing
Cellular Application
CATV Fiber Optic Links
Long Haul Networks
Metro Networks
Fiber Optical amplifier
Line Monitoring
Channel Add/Drop
Dense WDM Systems
Specification
| Parameter |
Unit |
4CH DWDM OADM | ||
| Add | Drop | |||
| Channel Wavelength | nm |
C33, C34, C35, C36 |
||
|
Center wavelength Accuracy |
nm | ITU-T Grid @DWDM | ||
|
Channel Passband |
nm | 0.8 (100Ghz) | ||
| Insertion Loss | dB | <1.8 | <1.8 | |
| Channel Ripple | dB | 0.5 | ||
| Isolation | Adjacent | dB | >30 | |
| Non-adjacent | dB | >40 | ||
|
Inertion Loss Temperature Sensitivity |
dB/℃ | <0.005 | ||
|
Wavelength Temperature Shifting |
nm/ ℃ |
<0.002 | ||
|
Polarization Dependent Loss |
dB | <0.15 | ||
|
Polarization Mode Dispersion |
dB | <0.1 | ||
| Directivity | dB | >50 | ||
| Return Loss | dB | >45 | ||
| Maximum Power Handling | mW | 300 | ||
| Opterating Temperature | ℃ | -20~+70 | ||
| Storage Temperature | ℃ | -40~85 | ||
| Package dimension | mm | LGX cassette | ||
1x8 Channel Fiber Optical Passive Dense Wavelength Division Multiplexer filter cascading
1x8 Channel Fiber Optical Passive Dense Wavelength Division Multiplexer
Dual Fiber DWDM
|
|
