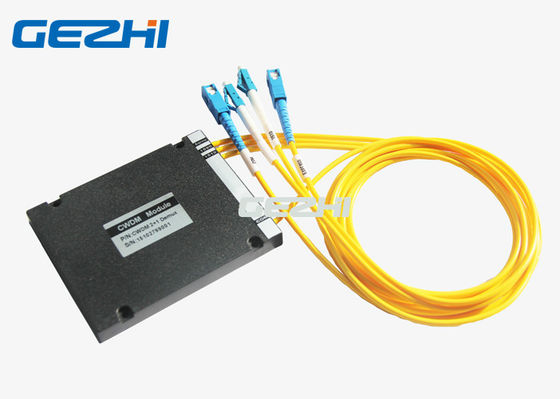

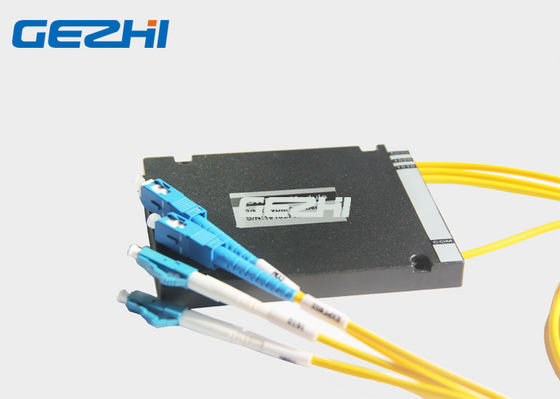

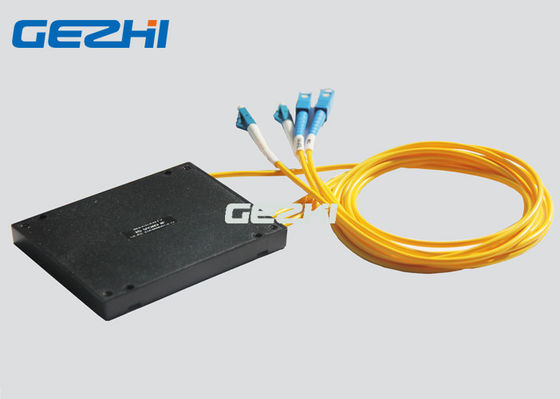

1 Channel OADM Multiplexer Module Add and Drop 1350nm West and East
GEZHI's OADM Multiplexer Module Add and Drop 1350nm West and East with 1 channel of CWDM wavelength1350nm. The 1 Channel OADM Multiplexer Module Add and Drop 1350nm West and East combines wavelength channels onto an optical transmission fiber. Gezhi's 1 Channel OADM Multiplexer Module Add and Drop 1350nm West and East are used in WDM systems for multiplexing or demultiplexing and routing fiber optic signals, selectively adding and dropping individual or sets of wavelength channels from a CWDM stream.
Features
Low Insertion Loss
Dual-sided East and West
No electric power required
Flexible OADM networking
Applications
Optical Add and Drop
Cellular Application
Telecommunication
Acess Network
WDM Network
Specification
|
Parameter |
Unit |
1CH CWDM OADM | ||
| Add | Drop | |||
| Channel Wavelength | nm | 1350nm | ||
|
Center wavelength Accuracy |
nm | ±0.5 | ||
| Channel Spacing | nm | 20 | ||
|
Channel Passband (@-0.5dB bandwidth |
nm | >13 | ||
| Insertion Loss | dB | <0.6 | <0.6 | |
| Channel Ripple | dB | 0.3 | ||
|
Isolation |
Adjacent | dB | >30 | |
| Non-adjacent | dB | >40 | ||
|
Inertion Loss Temperature Sensitivity |
dB/℃ |
<0.005 |
||
|
Wavelength Temperature Shifting |
nm/ ℃ |
<0.002 | ||
|
Polarization Dependent Loss |
dB | <0.1 | ||
|
Polarization Mode Dispersion |
dB | <0.1 | ||
| Directivity | dB | >50 | ||
| Return Loss | dB | >45 | ||
| Maximum Power Handling | mW | 300 | ||
| Opterating Temperature | ℃ | -20~+70 | ||
| Storage Temperature | ℃ | -40~85 | ||
| Package dimension | mm | L100x80x10 | ||
Note: 1. Customization is available.
2. Specified with connector
Drawing
1Channel CWDM OADM West and East on single fiber
It drops the individual channel and adds that same channel back onto the network fiber in dual-sided transmission.
1 channel 1350nm CWDM add & drop multiplexer for EAST and WEST for bi-directional data transmission over single fibers.
1 Channel Optical Add Drop Multiplexer west and east filter cascading
1 Channel OADM Multiplexer Module Add and Drop 1350nm West and East Single Fiber
|
|
