| Brand Name: | GEZHI or OEM |
| Model Number: | 1x4CH-D-27 |
| MOQ: | 1pc |
| Price: | Negotiable |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T, Western Union |

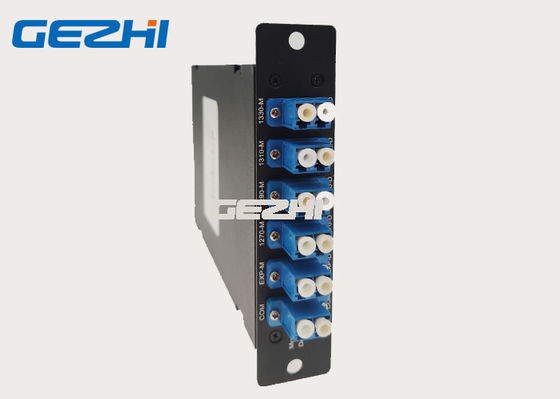

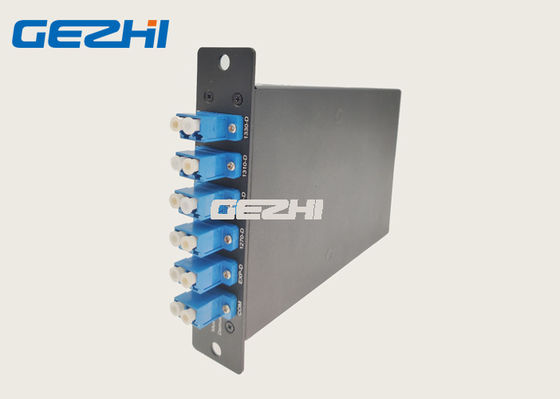

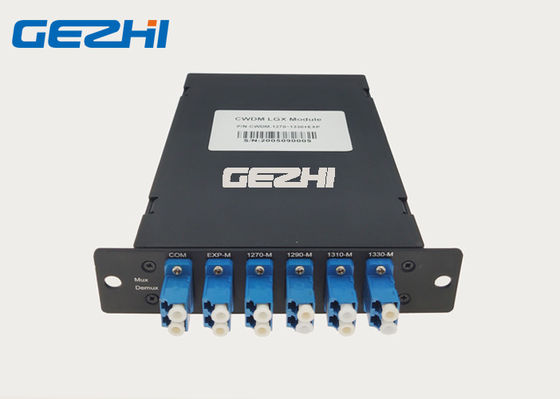

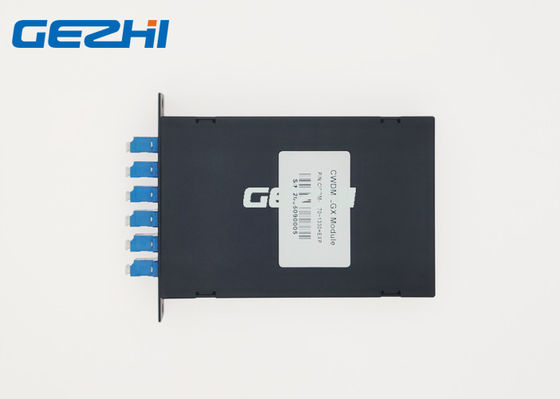

1x4 Channel CWDM Passive Multiplexer Module Plug-in LGX Chassis
GEZHI 1x4 Channel CWDM Passive Multiplexer Module is plug-in LGX chassis package connect with LC/PC adaptor. The wavelenght of 1x4 Channel CWDM Passive Multiplexer Module is 1270nm to 1330nm also with a express port for for Future Bandwidth Increasing. The 1x4 Channel CWDM Passive Multiplexer Module offers an high channel isolation WDM solution for data centers and Metro access applications. It is protocol transparent and suited for applications including 10/1G Ethernet, 16/8/4/2/1G Fibre Channel, SDH/SONET, CATV, FTTx, etc.
Features
Wide pass band
Dual Fiber
Low Insertion Loss
High stability and reliability
Epoxy-Free Optical Path
Protocal and rate transparent for applications up to 10Gbps
Completely passive, no power& no cooling required
Applications
Access Network
WDM network
Fiber optical amplifier
Channel Add/Drop
Line monitoring
Telecommunication
Specification
| Parameter | 1x4 Channel CWDM Passive Multiplexer | |
| Center Wavelength (nm) | ITU, ITU+1 | |
| Passband (nm) | ITU±7.5 | |
| Operating Wavelength (nm) | 1270,1290,1310,1330nm | |
| Channel Space (nm) | 20 | |
| Fiber Type | SMF-28e or customer specified | |
| IL (dB) | <1.5dB | |
| Isolation(dB) | Adjacent Channel | 30 |
| Non-Adjacent Channel | 40 | |
| PDL (dB) | 0.2 | |
| PMD (ps) | 0.1 | |
| Return Loss (dB) | 45 | |
| Directivity (dB) | 50 | |
| Maximum Optical Power (mw) | 500 | |
| Operating Temperature (℃) | -20~+70 | |
| Storage Temperature (℃) | -40～85 | |
| Connector | LC/UPC | |
| BOX Package (mm) | LGX chassis | |
1x4 Channel CWDM Passive Multiplexer Module Filter cascading
1x4 Channel Mux+demux, 1270,1290,1310,1330nm, LGX cassette, LC/UPC
1x4 Channel Mux+Demux , 1270,1290,1310,1330nm, LGX cassette, LC/UPC Dual Fiber
Video
|
