| Brand Name: | Gezhi or OEM |
| Model Number: | GEZHI-DWDM - MUX/DEMUX |
| MOQ: | 1 pieces |
| Price: | USD >= 1 pieces $195 |
| Delivery Time: | 7 Days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Product description

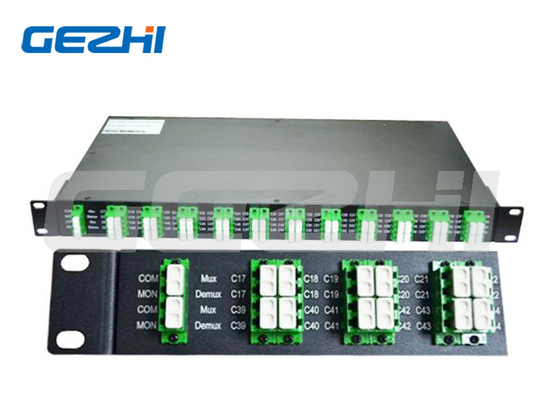

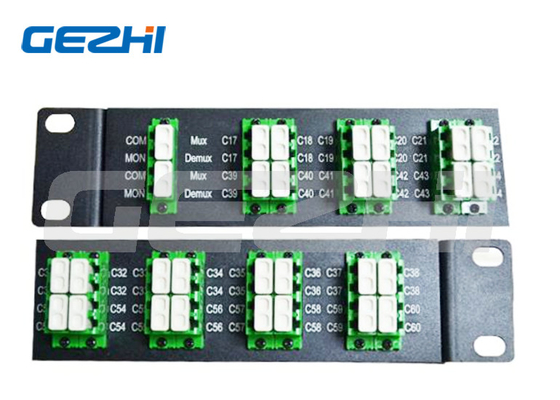

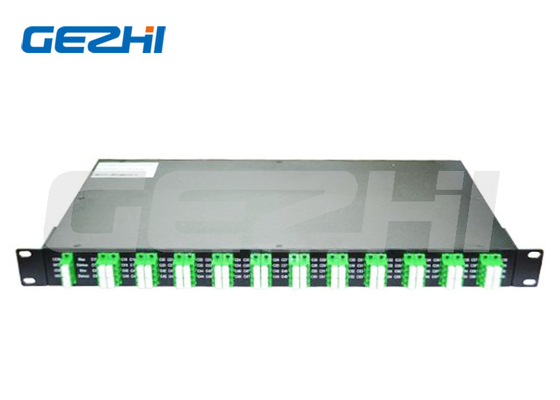

40 Channel LC/APC 100GHz Duplex Athermal AWG DWDM Module GEZHI-DWDMMUX/DEMUX
The AAWG DWDM (Athermal Arrayed Waveguide Grating Dense Wavelength Division Multiplexing) module is a fully passive WDMs based on silica-on-silicon planar technology that requires no electrical power and software. It operates at 50GHz or 100GHz channel spacing ITU Grid DWDM wavelengths from1526nmto 1565nm. The AAWG DWDM can be used to replace the filter-type DWDM Mux DeMux for cases wherenopower is available. The low cost and high performance make it the ideal solution for metro and long-haul DWDM applications. GEZHI Photonics provides a series of customized AAWG DWDM within standard metal box or rack mount to meet different requirements on Port Configuration (32 to 96 channels, 1310nm/monitoringportsavailable), Operating Wavelength, Fiber Type, Fiber Length, Input Connector, and Output Connector. And GEZHI Photonics provide Gaussian and Flat Top type chips of DWDM AAWG, which customers can choose accoding to their actual needs.
Feature
Low Insertion Loss High Isolation
Low PDL Compact Design
Good channel-to-channel uniformity
Wide Operating Wavelength From 1260nm to 1620nm Wide Operating Temperature From -40°C to 85°C High Reliability and Stabilit
|
|
| Brand Name: | Gezhi or OEM |
| Model Number: | GEZHI-DWDM - MUX/DEMUX |
| MOQ: | 1 pieces |
| Price: | USD >= 1 pieces $195 |
| Packaging Details: | inner box,Carton |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Product description
40 Channel LC/APC 100GHz Duplex Athermal AWG DWDM Module GEZHI-DWDMMUX/DEMUX
The AAWG DWDM (Athermal Arrayed Waveguide Grating Dense Wavelength Division Multiplexing) module is a fully passive WDMs based on silica-on-silicon planar technology that requires no electrical power and software. It operates at 50GHz or 100GHz channel spacing ITU Grid DWDM wavelengths from1526nmto 1565nm. The AAWG DWDM can be used to replace the filter-type DWDM Mux DeMux for cases wherenopower is available. The low cost and high performance make it the ideal solution for metro and long-haul DWDM applications. GEZHI Photonics provides a series of customized AAWG DWDM within standard metal box or rack mount to meet different requirements on Port Configuration (32 to 96 channels, 1310nm/monitoringportsavailable), Operating Wavelength, Fiber Type, Fiber Length, Input Connector, and Output Connector. And GEZHI Photonics provide Gaussian and Flat Top type chips of DWDM AAWG, which customers can choose accoding to their actual needs.
Feature
Low Insertion Loss High Isolation
Low PDL Compact Design
Good channel-to-channel uniformity
Wide Operating Wavelength From 1260nm to 1620nm Wide Operating Temperature From -40°C to 85°C High Reliability and Stabilit
