| Brand Name: | GEZHI or OEM |
| Model Number: | SC-FC DX Hybrid Adapter |
Hybrid Duplex Fiber Optic Adapter SC - FC FC - SC Metal Low Insertion Loss
PRODUCT DESCRIPTION
SC/UPC-FC/UPC hybrid adapter also call SC-FC hybrid optical fiber adapter. It use to connect the SC/UPC fiber optic patch cable and FC/UPC fiber optic adapter. With hight quality of ceramic sleeve, it can keep 0.2dB if insertion loss in 1000 times of mating. We do testing each of fiber optic adapter before delivery to warranty that it is standard goods when they come to customer's hand.
Applications
- Testing instruments
- Connection between devices
- Connection between fiber optic patch cords
- CATV, MANS, WANS
- Fiber to the home, FTTX
Advantage of the fiber optic adapters
- Our range of fiber optic cable adapter can consistent good quality as is proven by repeated tests. It is interchangeable with similar devices built to the same standards.
- We provides an extensive line of fiber optic adapters that offer superior low loss performance with very high repeatability.
- These products are designed and manufactured to comply with stringent Telcordia 100BaseFX Technologies standards.
- Low Insertion Loss means there is little reduction in light intensity along the transmission router.
- High Reliability
- Also compliant with the IEC and ROSH standards

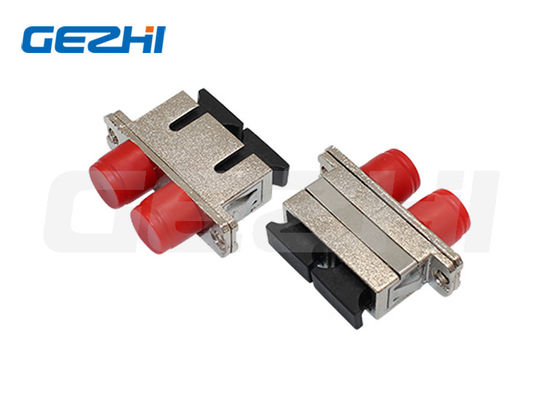

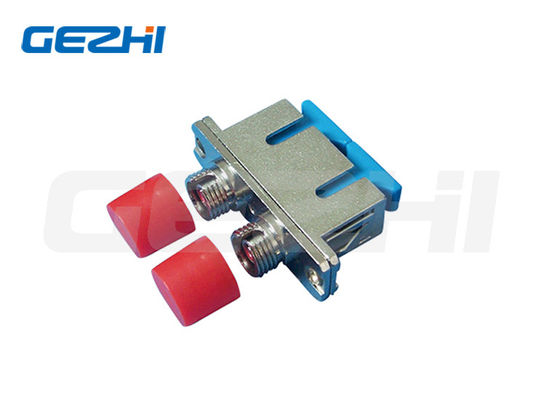

Product pictures
Specification of fiber optic adapters
| Parameter | Specifications | |
| Mating Connector Type | SC, LC, FC, ST, MU, D4, DIN, E2000, SMA, etc | |
| Fiber Type of Connector | Single Mode | Multimode |
| Adapter Color | Blue, green, metallic | Beige, Metallic |
| Testing Wavelength | 1310nm,1550nm | 850nm,1300nm |
| Insert Loss | Typical≤0.15dB, max≤0.2dB | Typical≤0.15dB, max≤0.2dB |
| Repeatability | ≤0.10dB | |
| Exchangeability | ≤0.20dB | |
| Durability | 1000Mating, max≤0.20dB | |
| Housing Material | Plastic or metal | |
| Operating Temperature | -20°C～+70°C | |
| Storage Temperature | -40°C～+85°C | |
| Alignment Sleeve | Ceramic (ZrO2) or customized | |
| Channel Number | Simplex, duplex, quad . | |
Reliability testing
| tem | Test Name | Additional Insertion Loss | Additional Return Loss |
| 1 | Mechanical durability | <0.2dB | <5dB |
| 2 | Repeatability | <0.2dB | <5dB |
| 3 | Lock strength | <0.2dB | <5dB |
| 4 | Low strength | <0.2dB | <5dB |
| 5 | High temperature | <0.2dB | <5dB |
| 6 | Steaming | <0.2dB | <5dB |
| 7 | Temperature cycle | <0.2dB | <5dB |
| 8 | Vibration | <0.2dB | <5dB |
| 9 | Drop | <0.2dB | <5dB |
OEM/ODM Service
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.
Packing
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.
|
|
