| Brand Name: | GEZHI or OEM |
| Model Number: | FC-ST SX Hybrid Adapter |
| MOQ: | 1pc |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union |

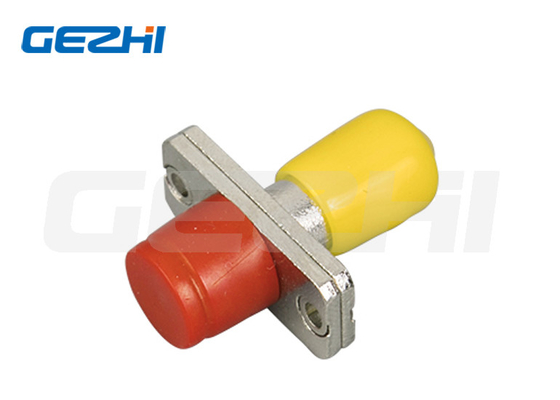

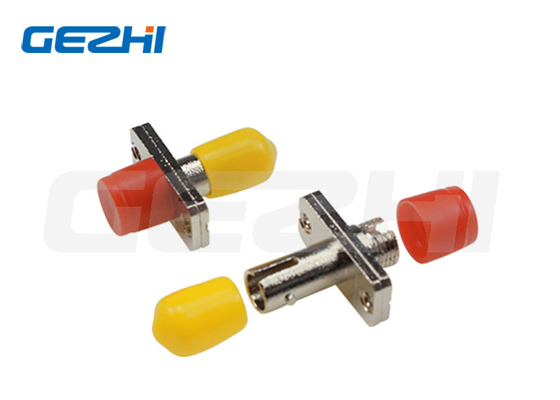

FC To ST Metal Fiber Optic Adapter, Singlemode SM Fiber ST Female To FC Male Conversion Hybrid Adapters
Product Description
Gezhi Photonics Co., Ltd offers many different types of hybrid fiber optic adapters, including the FC, ST, SC, LC, MU and DIN SMA series. These hybrid fiber adapters are single mode and multimode types, with PC or APC sleeves in either simplex or duplex styles. They are widely used when connecting different types of fiber optic connectors together in a fiber optic link.
Feature
• Low insertion loss
• Excellent Temperature stability
• Good repeatability and exchangeability
• Excellent mechanical endurance
• Strict curing time and temperature control
• Strict testing standards and methods for quality
• Environment protection (ROHS Compliance)
• The fiber optical patch cord can be customized according to customers'specific
requirements (Customized Connector/Length/package...)
• 100% NEW raw material and well quality control ensure the best life time.
Application
CATV
Passive/Active device termination
Tlelecommunication metworks
Metro Industry
Aero Industry
Local Area Networks(LAN)
Test equipment
Specification
| Optic fiber adapter | |
| Brand | Gezhi |
| Connector Type | FC, SC, ST, LC, MPO, etc. |
| Operating Wavelength | 1260nm-1650nm |
| Insertion Loss | ≤0.2dB, max 0.3dB |
| Return Loss | PC≥45dB ,UPC≥50dB,APC≥65dB |
| Exchangeability | ≤0.20dB |
| Type | FC UPC - ST UPC |
| Tensile | ≤0.10dB (0-15Hg, except Ø0.9mm) |
| Plug times | >500 (Times), ≤0.20dB |
| Storage Temperature | -40°C ~ +85°C |
| Operating Temperature | -40°C ~ +85°C |
|
|
