| Brand Name: | GEZHI or OEM |
| Model Number: | Fiber Optic Adapter |
| MOQ: | 1pc |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union |

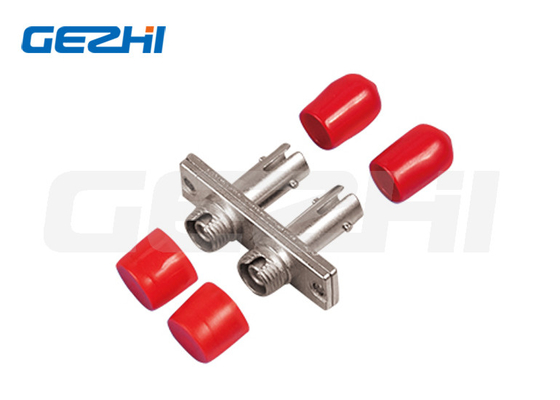

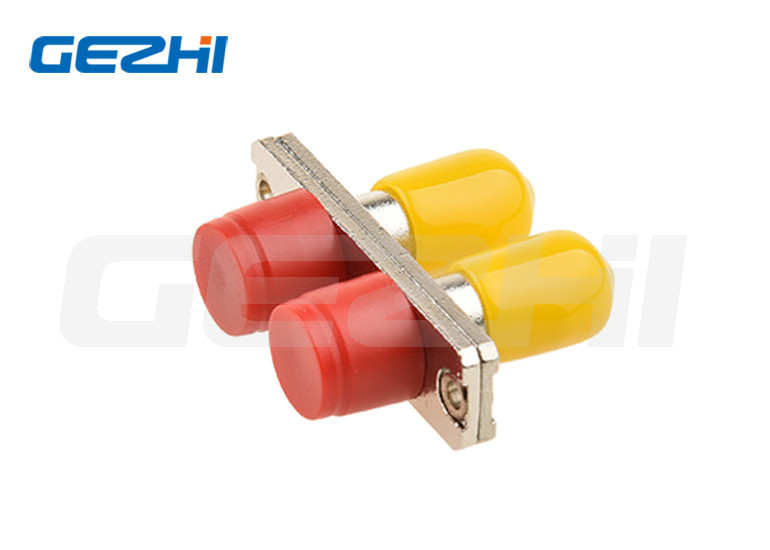

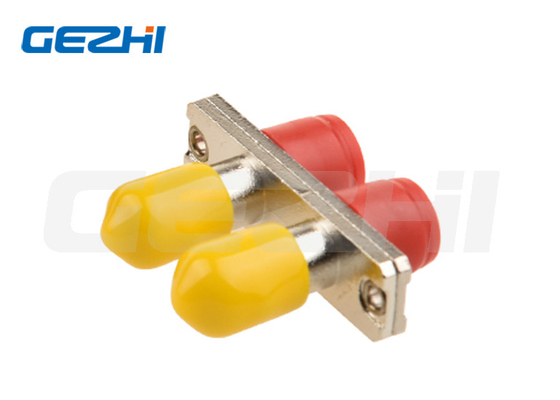

FC-ST DX Hybrid Fiber Optic Adapter/Coupler
Product Description
Fiber optic adapter, also called coupler, is a small device designed to terminate or link the fiber optic cables or fiber optic connectors between two fiber optic lines.
By linking two connectors precisely, fiber optic adapters allow the light sources to be transmitted at most and lower the loss as much as possible. At the same time, fiber optic adapters have the merits of low insertion loss, good interchangeability and reproducibility. And each fiber optic Adapter is functionally tested before shipping.
Applications
Used in LC optical fiber interface to connect the connector of SFP module ;
It is made by the easy-to-operate modular jack (RJ) latch mechanism. (Routers are commonly used)
HOT SALE
| Connector Type | LC, SC, FC, ST | |||||||
|
Used in LC optical fiber interface to connect the connector of SFP module. It is made by the easy-to-operate modular jack (RJ) latch mechanism. (Routers are commonly used) | |||||||
|
Used in SC fiber optic interface, it looks very similar to the RJ-45 interface, but the SC interface is flatter, and the obvious difference is the inner contact. If it is 8 thin copper contacts, then It is an RJ-45 interface, if it is a copper column, it is an SC fiber interface. | |||||||
|
Used in FC optical fiber interface, the external strengthening method is a metal sleeve, and the fastening method is a turnbuckle. Generally used on the ODF side (most used on the distribution frame) | |||||||
|
Used in ST optical fiber interface, commonly used in optical fiber distribution frame, the shell is round, and the fastening method is turnbuckle. (For 10Base-F connection, the connector is usually ST type. Commonly used in optical fiber distribution frame) | |||||||
Characteristics
| Parameter | FC, SC, LC, ST, MU, MTRJ, ST-SC, FC-SC, ST-FC | |||||||
| SM (OS2) |
MM (OM1,2,3,4) |
|||||||
| Operating Wavelength(nm) | 1310-1550 | 850-1300 | ||||||
| Insertion Loss (dB) | ≤ 0.2 | |||||||
| Return Loss (dB) | PC ≥45 | UPC ≥50 | APC ≥60 | PC ≥30 | ||||
| Repeatability (dB) | ≤ 0.2 | |||||||
| Alternating loss (dB) | ≤ 0.2 | |||||||
| Durability | The change of 500 interpolation times is less than 0.20dB | |||||||
| Number of channels | Single core, Dual core, 4 core | |||||||
| Frame material | Metal or Plastic | |||||||
| Sleeve material | Ceramic or Metal | |||||||
| Operating Temperature (℃) | -40 ~ +85 | |||||||
| Storage Temperature (℃) | -40 ~ +85 | |||||||
OEM/ODM service for you
Gezhi Photonics has rich expiriences in producing OEM/ODM cases becaused of Profession R & D team.
• Customized Logo
• Printing on Cable
• Label/PE bag/Carton design
• Different Color & Different Lengths Available
|
|
