Fiber Optic Box
Created with Pixso. LCUPC SCUPC 1U ODF Optical Distribution Frame Slide Withdrawable 24 Cores Fiber Optic Box

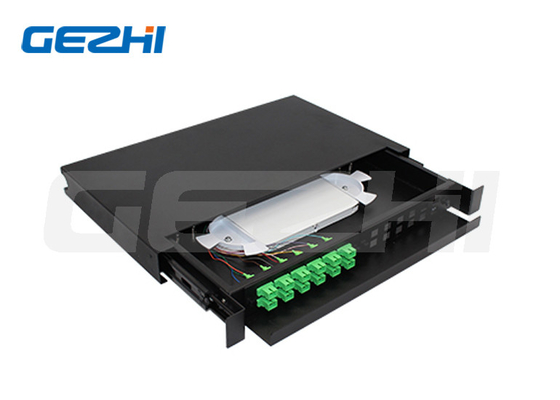

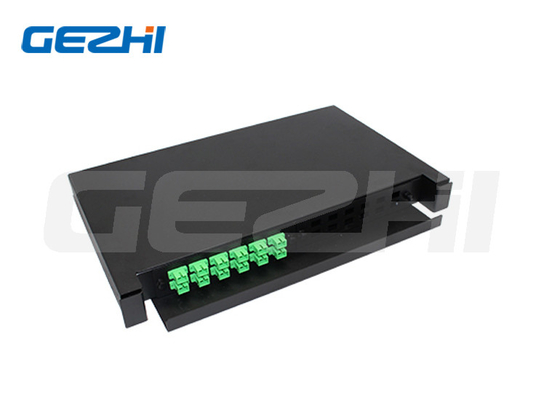

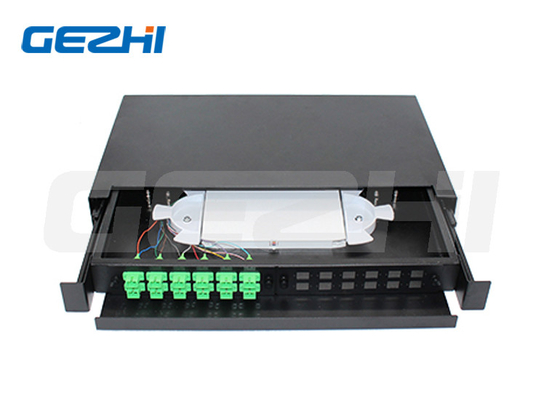

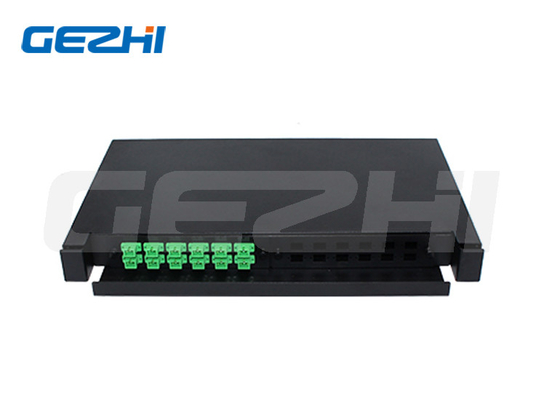

LCUPC SCUPC 1U ODF Optical Distribution Frame Slide Withdrawable 24 Cores Fiber Optic Box

Brand Name: GEZHI or OEM
Model Number: 24 Cores 1U Odf
MOQ: 1pc
Price: Negotiable
Payment Terms: T/T, Western Union
Detail Information
Place of Origin:
China
Certification:
CE RoHS,ISO9001
Product:
Optical Distribution Unit
Application:
Indoor
Installation:
19 Inch
Height:
1U
Fiber Ports:
SC LC FC ST
No. Of Ports:
24 Ports
Packaging Details:
Paper box
Supply Ability:
5000pcs per month
Highlight:

1U ODF Fiber Optic Box

,

LCUPC ODF Optical Distribution Frame

,

SCUPC ODF Optical Distribution Frame

Product Description

Slide Withdrawble 24 Cores LCUPC SCUPC 1U Odf Optical Distribution Frame



Product Description

Optical fiber distribution frame, also known as optical fiber terminal box, is a wiring device used for terminating, protecting, connecting and managing optical cables and optical fibers in an optical fiber communication network. It can realize the fixing, stripping and grounding protection of the optical fiber cable, and the fusion, jump, redundant coiling, reasonable layout, and wiring height of various optical fibers. device.



Features

  • Modular design, compatible with industry standard equipment frame, 19" or 21” Rack.
  • Integrated design provides OSP cable fibers and pigtail splicing, patch-cord termination and storage.
  • Provides maximum protection of optical components
  • Excellent mechanical performance
  • Sliding out type with rails for easy operation
  • Reliable fiber routing and fixing design
  • Minimum fiber bending radius guaranteed
  • Good dust proof performance

Applications

  • Telecommunication Closets
  • Data Centers
  • Customer Premise
  • Central Offices
  • Hubs
  • Cabinets
  • Remote Terminals

Structure and Material

  • Cold rolled steel sheet material, thickness 1.2mm
  • Black or grey powder coating
  • Universal mounting bracket
  • 19” & 21” rack compatible
  • Rugged construction, ensuring environmental, mechanical, and optical integrity

Specifications

  • Operating Temperature: -20~+55℃
  • Relative humidity: ≤85% (30℃)
  • Atmosphere pressure: 70~106KPa
  • Insulation Resistance: ≥2x10MΩ/500V(DC)

Dimensions

Slide Withdrawble 24 Cores SCUPC 1U Odf Optical Distribution Frame 0
