| Brand Name: | GEZHI or OEM |
| Model Number: | 6 Core Optical Termination Box |
| MOQ: | 1pc |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union |

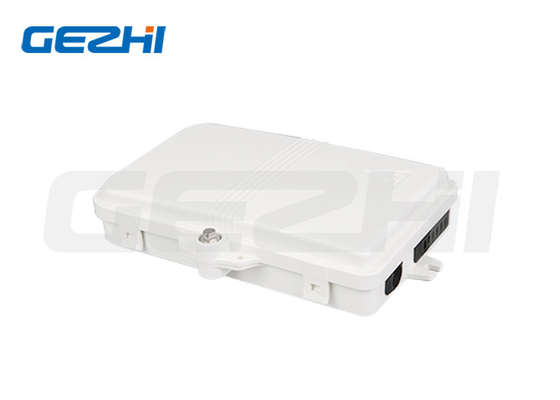

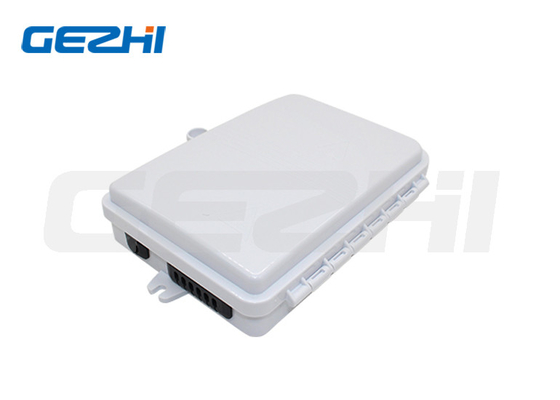

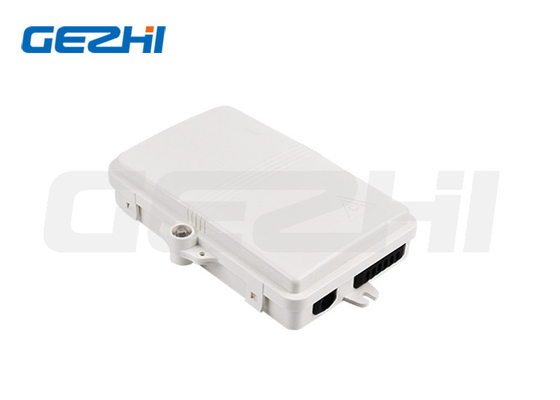

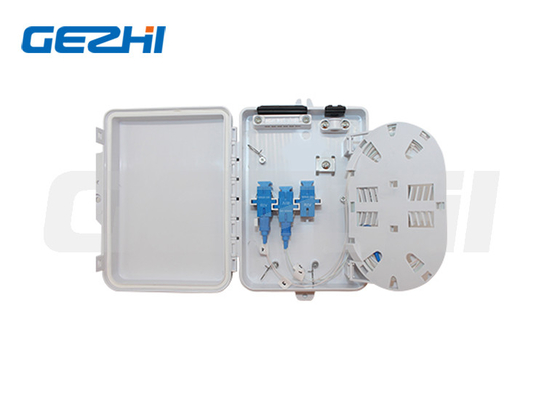

6 Core FTTH Mini Optical Termination Box / Distribution Box With SC Adapter
Description
FTTH Mini Fiber Optic Terminal Box is widely used as a termination point for feeder cable to connect with drop cable.The fiber splicing ,splitting, distribution can be done in this box,and meanwhile it provides solid protection and menagemant for FTTX network.Can be used indoor.
Feature
Economic design
Removable cover for easy access
Ability to allow cables to enter from both sides of the unit
compact, low profile, wall mounted unit used for small and large business premises
Applications
The telecommunication network, mereopolitan area network, optical fiber communication sustem;
Optical testing equipment / instucment
CATV optical fiber , optical fiber sensor
Optical fiber broadband access network, FTTH optical fiber
Optical fiber broadband frame, frame type and wall type optical fiber distribution unit
Specification
| Adapter Type | SC Simplex / LC Duplex |
| Working Temperature | -40℃~+65℃ |
| Protection Levels | IP65 |
| Optional Accessories | Adapters, Pigtails, Heat Shrink, Mini Splitter |
| Box Opening Angle | 180° |
| Application | Indoor Wall Hanging, Outdoor Wall Hanging |
| Product Feature | Water - proof, UV - proof, Laser - proof |
|
|
| Brand Name: | GEZHI or OEM |
| Model Number: | 6 Core Optical Termination Box |
| MOQ: | 1pc |
| Price: | Negotiable |
| Packaging Details: | Paper box |
| Payment Terms: | T/T, Western Union |
6 Core FTTH Mini Optical Termination Box / Distribution Box With SC Adapter
Description
FTTH Mini Fiber Optic Terminal Box is widely used as a termination point for feeder cable to connect with drop cable.The fiber splicing ,splitting, distribution can be done in this box,and meanwhile it provides solid protection and menagemant for FTTX network.Can be used indoor.
Feature
Economic design
Removable cover for easy access
Ability to allow cables to enter from both sides of the unit
compact, low profile, wall mounted unit used for small and large business premises
Applications
The telecommunication network, mereopolitan area network, optical fiber communication sustem;
Optical testing equipment / instucment
CATV optical fiber , optical fiber sensor
Optical fiber broadband access network, FTTH optical fiber
Optical fiber broadband frame, frame type and wall type optical fiber distribution unit
Specification
| Adapter Type | SC Simplex / LC Duplex |
| Working Temperature | -40℃~+65℃ |
| Protection Levels | IP65 |
| Optional Accessories | Adapters, Pigtails, Heat Shrink, Mini Splitter |
| Box Opening Angle | 180° |
| Application | Indoor Wall Hanging, Outdoor Wall Hanging |
| Product Feature | Water - proof, UV - proof, Laser - proof |
