| Brand Name: | GEZHI or OEM |
| Model Number: | LC UPC/APC 0.9mm Connector |
| MOQ: | 1pc |
| Price: | gotiable |
| Payment Terms: | T/T, Western Union |

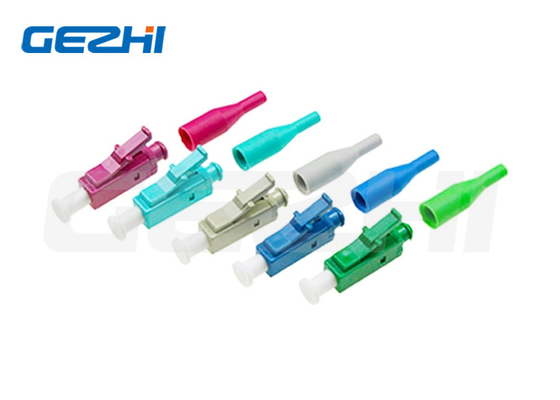

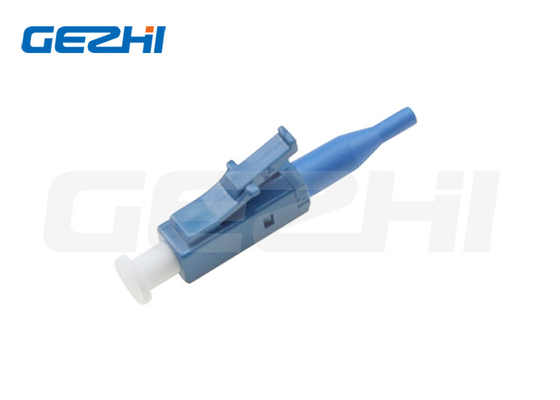

Compact Single Mode Simplex Optic Fiber Connector LC UPC APC 0.9mm FTTH Blue Green
Product Descriptions of Fiber Optic Connector:

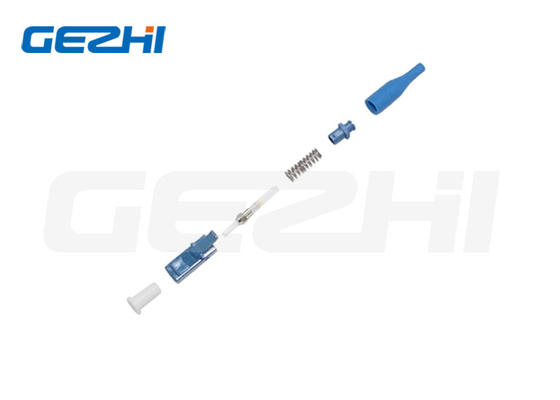

The fiber optic connector has a screw thread fitting into the adapter to provide a secure connection. The connector is comprised of a nickel plated brass body and a ceramic ferrule/spring/crimp barrel assembly plus a crimp-over sleeve and rubber boot.
Optical Connector is a reusable passive component which could be applied in fiber and Cable connection. They are widely used in ODF, ODN,PON etc.Begate develop molds and produce various of kinds of Single Mode and Multi-mode fiber optic connectors for ST, SC, FC, LC, E2000, MPO, MU and MTRJ applications. Both pre-assembled connector and connector kits are available. Each fiber optic connector is functionally tested before shipping.
Application of Fiber Optic Connector:
1. Test Equipment
2. Data Processing Networks
3. Industrial, Medical & Military
4. Telecommunication Networks
5. Premise Installations
6. CATV, Metro
7. Local Area Networks (LANs)
8. Wide Area Networks (WANs)
9. Active Device Termination
Features of Fiber Optic Connector:
1. Low insertion Loss and Back reflection loss
2. Polarized and color-coded (TIA568-A&ISO 11801)
3. UL-rated plastic housing and boot
4. Compact, pull-proof design
5. Behind-the-Wall style short connector
Product Details of Fiber Optic Connector:
| Connector Type | Performance Level | |||||
| Standard | Elite | |||||
| Connector | Mode | Endface | IL(dB) | RL(dB) | IL(dB) | RL(dB) |
| LC/SC/FC/ST | SM | PC | ≤0.3 | ≥50 | ≤0.2 | ≥50 |
| UPC | ≤0.3 | ≥55 | ≤0.2 | ≥55 | ||
| APC | ≤0.3 | ≥60 | ≤0.2 | ≥60 | ||
| MM | PC | ≤0.3 | ≥35 | ≤0.2 | ≥35 | |
| MPO/MTP | SM | APC | ≤0.7 | ≥60 | ≤0.35 | ≥35 |
| MM | PC | ≤0.5 | ≥20 | ≤0.35 | ≥20 | |
| MTRJ | SM | PC | ≤0.5 | ≥50 | / | / |
| MM | PC | ≤0.5 | ≥35 | / | / | |
Packaging:
1. Several pieces in a master PE bag
2. Hundreds piece in a cartoon
3. Other size carton is available too.
Pictures:
|
|
