| Brand Name: | GEZHI or OEM |
| Model Number: | SC/UPC 2.0mm/3.0mm DX Connector |
| MOQ: | 1pc |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union |

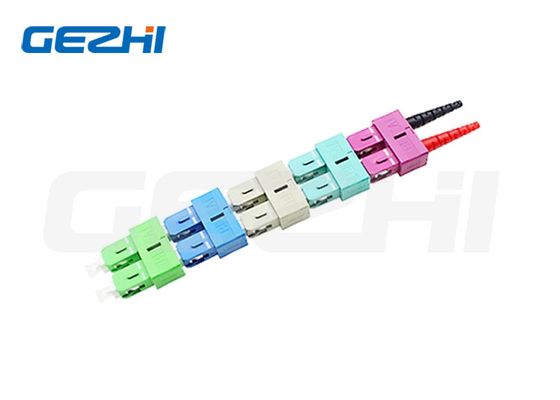

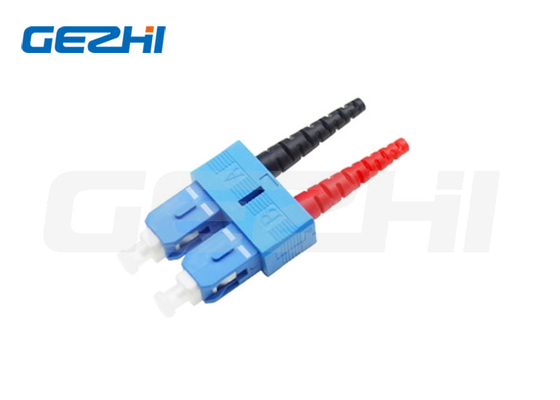

2.0mm 3.0mm FTTX SC UPC Optic Fiber Connector Kit Duplex Fiber Connector
Product Description of Fiber Optic Connector:
The optical fiber connector is a device for detachable connection between the optical fiber and the optical fiber. It precisely connects the two end faces of the optical fiber so that the light energy output by the transmitting optical fiber can be coupled to the receiving optical fiber to the maximum extent, and the Its intervention in the optical link minimizes the impact on the system, which is the basic requirement of optical fiber connectors. To a certain extent, the optical fiber connector affects the reliability and performance of the optical transmission system.
Application of Fiber Optic Connector:
1. Local Area Network (LAN)
2. Fiber to the home (FTTH)
3. Telecommunications；mobile network construction
4. Optical patch panels
5. Testing Instruments
6. CATV
7. Optical active terminal connection
8. Data center network construction
Features of Fiber Optic Connector:

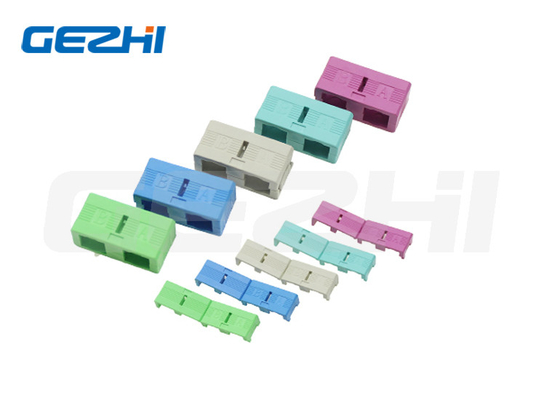

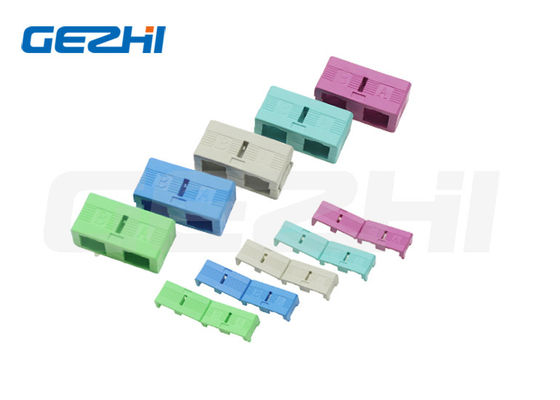

1. Avariety of models and color options for tail sleeves
2. Using precision ceramic ferrules to ensure excellent insertion loss and return loss
3. The advanced grinding process guarantees 100% pass the 3D test
4. Various fiber options of G652D, G657A, G657B3, OM1, OM2, OM3, OM4 are available
5. Provide SC, FC, LC, ST, E-2000, MTRJ, MU, MTP, MPO, DIN, SMA-905/906, D4 and other options
6. Avariety of models and color options for tail sleeves
7. Using precision ceramic ferrules to ensure excellent insertion loss and return loss
8. The advanced grinding process guarantees 100% pass the 3D test
9. Various fiber options of G652D, G657A, G657B3, OM1, OM2, OM3, OM4 are available
10. Provide SC, FC, LC, ST, E-2000, MTRJ, MU, MTP, MPO, DIN, SMA-905/906, D4 and other options
11. Low insertion loss,high return loss
12. Excellent Temperature stability
13. Good repeatability and exchangeability
14. Excellent mechanical endurance
15. Strict testing standards and methods for quality
16. Environment protection (ROHS Compliance)
17. 100% NEW raw material and well quality control ensure the best life time.
Technical Parameter of Fiber Optic Connector:
| Parameter | FC, LC,SC, ST, MU, D4, DIN4 | MTRJ | E2000 | ||||||
| SM | MM | SM | MM | SM | |||||
| PC | UPC | APC | PC | PC | UPC | PC | PC | APC | |
| Insertion loss(typical) | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.2 | ≤0.3 |
| Return loss(dB) | ≥45 | ≥50 | ≥60 | ≥35 | ≥45 | ≥50 | ≥35 | ≥55 | ≥75 |
| Exchangeability(dB) | ≤0.2 | ||||||||
| Vibration(dB) | ≤0.2 | ||||||||
| Operating temperature(℃) | -40~75 | ||||||||
| Storage temperature(℃) | -45~85 | ||||||||
| Cable diameter(mm) | 3.0mm, 2.0mm, 0.9mm(customizes) | ||||||||
| Fiber Type | 9/125 SMF-28 (Singlemode) OS2 OS1 (G652D, G657A1, G657A2, G657B1, G657B2, G657B3...) | ||||||||
| OM2, (50/125), OM1(62.5/125) (Multimode) | |||||||||
| OM3 (50/125), (Multimode) , 10G 25G 40G | |||||||||
| OM4 OM5 (50/125), (Multi Mode), 40G 100G 200G... | |||||||||
| Connector Options: | FC/SC/LC/ST/MU/E2000/MT-RJ/MPO/MTP | ||||||||
| Polishing Options: | PC/UPC/APC | ||||||||
| Jacket Material: | PVC(typical), LSZH, OFNR etc | ||||||||
| Color Options: | Yellow, Orange, Aqua, Purple, Pink, White, Black | ||||||||
| Length Options: | 0.5 1m, 2m, 3m 5m, 10m or Custom. | ||||||||

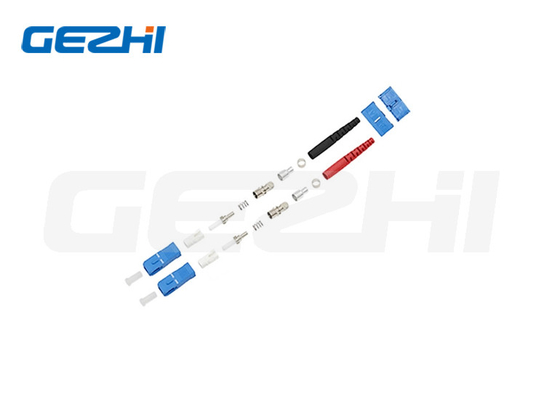

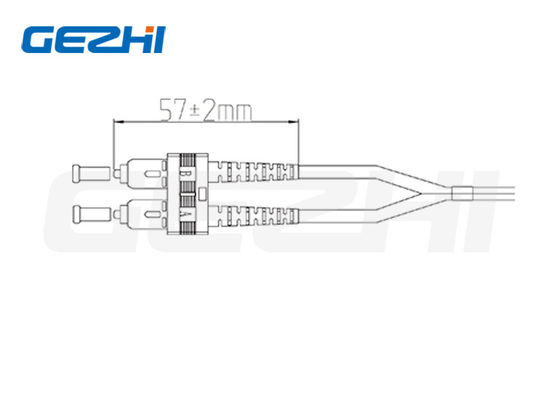

Detail of Fiber Optic Connector:
FAQ:
Q: Are you trading company or manufacturer ?
A: We are factory
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantit
|
|
