Product Overview of AAWG DWDM Module
80 Channel DWDM module Gaussion AAWG Mux / Demux module for Data Center

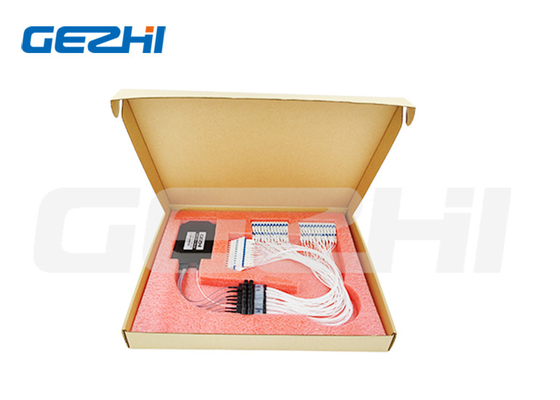

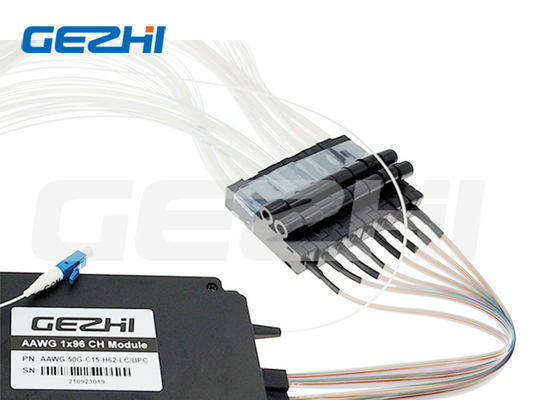

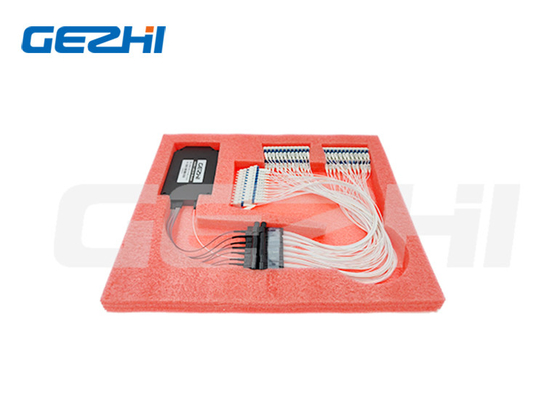

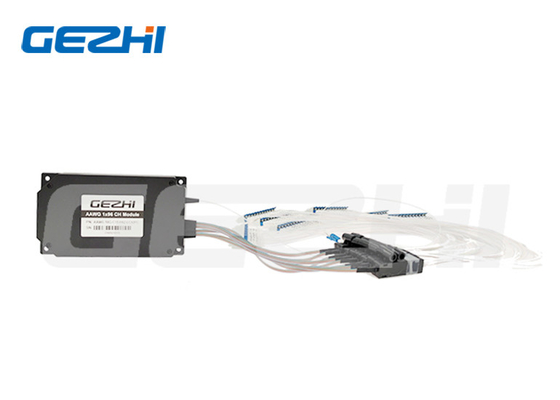

Gaussion AAWG Mux / Demux module 80CH DWDM module
GEZHI Gaussion AAWG mux / demux based on silica on silicon technology, is designed for ITU channel spacing applications where no electrical power is required. This AAWG DWDM Module operates at 50GHz spacing ITU Grid DWDM wavelengths total 80 channels. The low cost and high performance make it the ideal solution for metro and long-haul DWDM applications. The 96CH 50Ghz AAWG DWDM can be used to replace the traditional TFF (thin film filter) DWDM products for cases where no power is available.
Features & Applications of AAWG DWDM Module
|
Features High Channel Isolation
|
Applications Metro networks
|
Specifications of AAWG DWDM Module
| Parameter | Unit | AAWG Module | ||||||||||
| Channel | CH | 32 | 40 | 48 | 80 | 96 | 32 | 40 | 48 | 80 | 96 | |
| Channel Spacing | GHz | 100 | 100 | 100 | 50 | 50 | 100 | 100 | 100 | 50 | 50 | |
| Chip Type | -- | Gaussian Type | Flat Top Type | |||||||||
| 1dB Channel Bandwidth | nm | >0.2 | >0.2 | >0.2 | >0.18 | >0.18 | >0.38 | >0.38 | >0.38 | >0.18 | >0.18 | |
| 3dB Channel Bandwidth | nm | >0.4 | >0.4 | >0.4 | >0.28 | >0.28 | >0.58 | >0.58 | >0.58 | >0.28 | >0.28 | |
| Insertion Loss | dB | <4.5 | <4.5 | <4.5 | <6.5 | <6.5 | <5.5 | <5.5 | <5.5 | <7.0 | <7.0 | |
| Adjacent Crosstalk | dB | >25 | >25 | >25 | >22 | >22 | >25 | >25 | >25 | >22 | >22 | |
| Non-adjacent Crosstalk | dB | >30 | >30 | >30 | >27 | >27 | >30 | >30 | >30 | >27 | >27 | |
| Total Crosstalk | dB | >22 | >22 | >22 | >20 | >20 | >22 | >22 | >22 | >20 | >20 | |
| Return Loss | dB | >40 | ||||||||||
| Ripple | dB | <0.7 | ||||||||||
| PDL | dB | <0.5 | ||||||||||
| PMD | ps | <0.5 | ||||||||||
| Chromatic Dispersion | Ps/nm | ±20 | ||||||||||
| Operating Temperature | ℃ | -5~+65 | ||||||||||
| Storage Temperature | ℃ | -40~+85 | ||||||||||
Odering Information of AAWG DWDM Module
| AAWG | Channel | Configuration | AWG Type | Package | COM Fiber Length |
Ribbon/Fan-out Fiber Length |
Connector |
|
050G 100G 200G |
32=32 CH 40=40 CH 48=48 CH 80=80 CH 96=96 CH S=Specify |
S=Single fiber D=Dual Fiber
|
F=Flat-top G=Gaussian |
B=Metal Box R=19”1U Rackmount S=Specify |
05=0.5m 10=1.0m S=Specify |
0505=0.5m/0.5m 1010=1.0m/1.0m |
00=none LP=LC/UPC LA=LC/APC SP=SC/UPC SA=SC/APC FP=FC/UPC FA=FC/APC S=Specify |
Metal Box Package Size
|
|
