| Brand Name: | GEZHI or OEM |
| Model Number: | GZ-ADE100x |
| MOQ: | 1pc |
| Price: | Negotiable |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T, Western Union |
Product Overview of AAWG DWDM

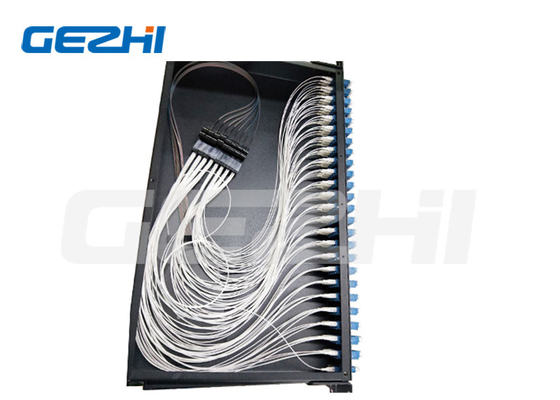

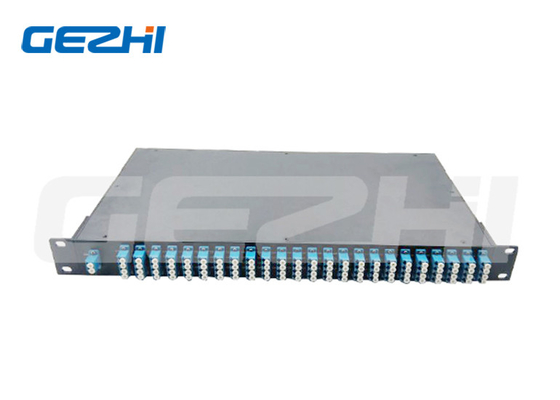

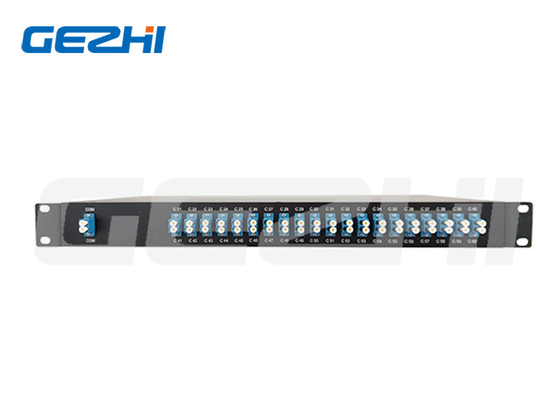

100G AAWG DWDM Equipment Gaussian Type Dual Fiber for long haul Networks
AAWG DWDM Equipment Gaussian Type Dual Fiber
The 100G AAWG DWDM Equipment Gaussian Type Dual Fiber offers an ultra low-loss (Max: 3.5dB) and high channel isolation WDM solution for metro access and data centers applications. this 100G AAWG DWDM Equipment Gaussian Type Dual Fiber ease of fiber handling, long-term reliability and excellent channel isolation in a 1U 19" Rackmount, which is the ideal device for systems requiring superior performance, low cost and high channel counts. The 100G AAWG DWDM Equipment Gaussian Type Dual Fiber built-in Mux + Demux in one unit, working on two network fibers.
Features & Applications of AAWG DWDM
|
Features High Channel Isolation Standalong 19" 1U Rackmount Completely passive Low Insertion Loss
|
Applications Metro and long haul Networks Optical signal processing Wavelength selective routing WDM based ADM WDM transmission
|
Specifications of AAWG DWDM
| Parameter | Unit | AAWG Module | ||||||||||
| Channel | CH | 32 | 40 | 48 | 80 | 96 | 32 | 40 | 48 | 80 | 96 | |
| Channel Spacing | GHz | 100 | 100 | 100 | 50 | 50 | 100 | 100 | 100 | 50 | 50 | |
| Chip Type | -- | Gaussian Type | Flat Top Type | |||||||||
| 1dB Channel Bandwidth | nm | >0.2 | >0.2 | >0.2 | >0.18 | >0.18 | >0.38 | >0.38 | >0.38 | >0.18 | >0.18 | |
| 3dB Channel Bandwidth | nm | >0.4 | >0.4 | >0.4 | >0.28 | >0.28 | >0.58 | >0.58 | >0.58 | >0.28 | >0.28 | |
| Insertion Loss | dB | <4.5 | <4.5 | <4.5 | <6.5 | <6.5 | <5.5 | <5.5 | <5.5 | <7.0 | <7.0 | |
| Adjacent Crosstalk | dB | >25 | >25 | >25 | >22 | >22 | >25 | >25 | >25 | >22 | >22 | |
| Non-adjacent Crosstalk | dB | >30 | >30 | >30 | >27 | >27 | >30 | >30 | >30 | >27 | >27 | |
| Total Crosstalk | dB | >22 | >22 | >22 | >20 | >20 | >22 | >22 | >22 | >20 | >20 | |
| Return Loss | dB | >40 | ||||||||||
| Ripple | dB | <0.7 | ||||||||||
| PDL | dB | <0.5 | ||||||||||
| PMD | ps | <0.5 | ||||||||||
| Chromatic Dispersion | Ps/nm | ±20 | ||||||||||
| Operating Temperature | ℃ | -5~+65 | ||||||||||
| Storage Temperature | ℃ | -40~+85 | ||||||||||
Chip type of Athermal AWG Module
 |
|
Odering Information of AAWG DWDM
| AAWG | Channel | Configuration | AWG Type | Package | COM Fiber Length |
Ribbon/Fan-out Fiber Length |
Connector |
|
050G 100G 200G |
32=32 CH 40=40 CH 48=48 CH 80=80 CH 96=96 CH S=Specify |
S=Single fiber D=Dual Fiber
|
F=Flat-top G=Gaussian |
B=Metal Box R=19”1U Rackmount S=Specify |
05=0.5m 10=1.0m S=Specify |
0505=0.5m/0.5m 1010=1.0m/1.0m |
00=none LP=LC/UPC LA=LC/APC SP=SC/UPC SA=SC/APC FP=FC/UPC FA=FC/APC S=Specify |
100G AAWG DWDM Equipment Gaussian Type transmission over Dual Fiber
|
|
| Brand Name: | GEZHI or OEM |
| Model Number: | GZ-ADE100x |
| MOQ: | 1pc |
| Price: | Negotiable |

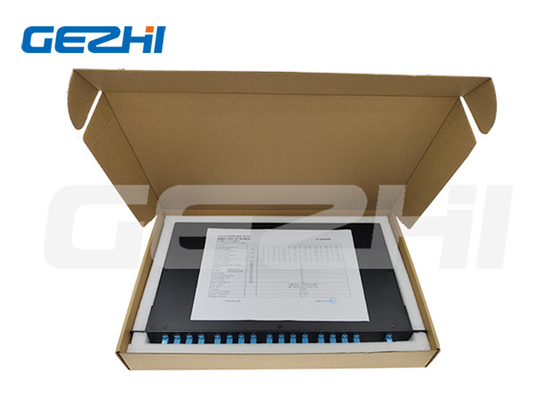

| Packaging Details: | Paper box |
