| Brand Name: | GEZHI or OEM |
| Model Number: | GZ-MxN-MOS100x |
| MOQ: | 1pc |
| Price: | Negotiable |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T, Western Union |

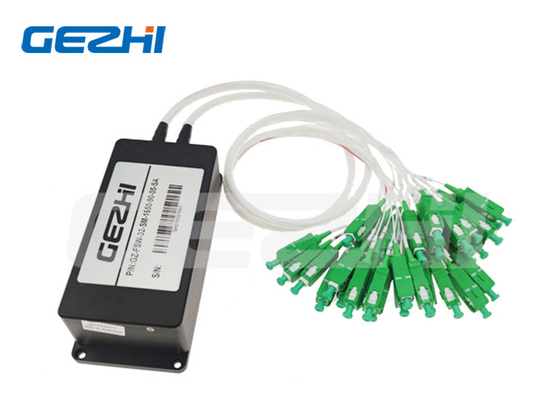

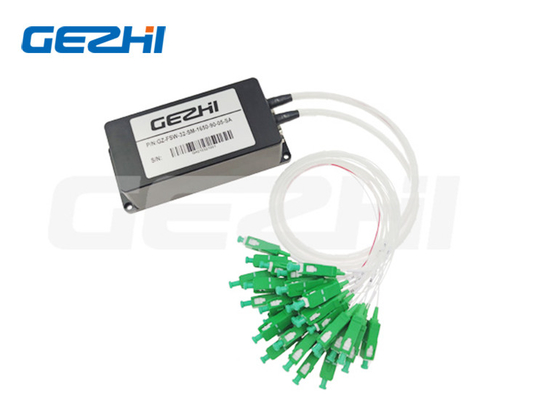

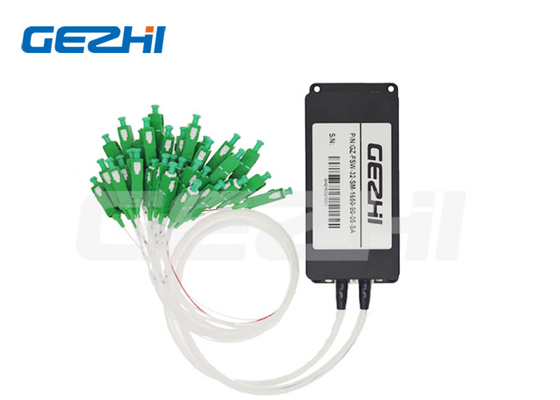

Product Overview of MxN Matrix Optical Switch
2x16 3x16 4x4 4x16 8x8 Matrix optical switch for System Monitoring
Matrix Optical Switch
The Matrix MXN fiber optical switches allow simultaneous connection between M inputs and N output fibers, in a fully non-blocking, all-optical, cross-connect configuration. GEZHI MxN Optical Matrix Switches are useful to add redundancy to an optical network,or for resource sharing in test & measurement applications. This matrix fiber optical switch is available in any MxN size up to 128x128.
This Matrix Fiber Optical Switch is developed by GEZHI Photonics Co.,Ltd. The Matrix fiber optical switch with high-speed, high-performance fiber-optic switch allows any number of M input fibers to connect to any number of N output fibers in a fully non‑blocking manner. Its with MxN customized channel as 2x16 , 3x16 , 4x4 , 4x16 , 8x8 , 16x16 , 18x18 , 32x32 any size up to 128x128 channel matrix fiber optical switch.
Features & Applications of MxN Matrix Optical Switch
|
Features
|
Applications
|
Specifications of MxN Matrix Optical Switch
| Parameter | Unit | 2x4 | 2x8 | 2x12 | 2x16 | 2x24 | 2x32 | 2x64 | 4x4 | 8x8 | 16x16 |
| Wavelength Range | nm | 1260~1650 | |||||||||
| Testing Wavelength | nm | 1310/1550 | |||||||||
| Insertion Loss | dB | ≤1.5 | ≤1.5 | ≤1.5 | ≤1.5 | ≤1.8 | ≤1.8 | ≤2.0 | ≤1.8 | ≤1.8 | ≤1.8 |
| Return Loss | dB | SM ≥ 50 | |||||||||
| Crosstalk | dB | ≤-70 | |||||||||
| PDL | dB | ≤0.05 | |||||||||
| WDL | dB | ≤0.25 | |||||||||
| TDL | dB | ≤0.25 | |||||||||
| Repeatability | dB | ≤0.02 | |||||||||
| Lifetime | times | >107 | |||||||||
| Switching Time | ms | ≤8 (Adjacent Channel) | |||||||||
| Optical Power | mW | ≤500 | |||||||||
| Control Mode | / | TTL or Customized | |||||||||
| Operating Temperature | ℃ | -10~+55 | |||||||||
| Storage Temperature | ℃ | -40~+85 | |||||||||
| Module type Dimensions | mm |
135x 64x32 |
220x 204x48 |
220x 204x48 |
220x 204x48 |
220x 204x78 |
220x 204x78 |
300x300x120 |
173x 71x20 |
300x 300x80 |
300x300x120 |
2x32 Matrix Optical Switch Drawing
| OSW | Mode | Wavelength | Package | Fiber Type | Fiber Length | Connector |
|
2x4 2x32 4x4 4x16 6x36 8x8 16x16 32x32 S=Specity |
S=SM M=MM |
85=850nm 13=1310nm 15=1550nm 85/13=850/1300 13/15=1310/1550nm S=Specify |
M=Module S=Specify |
M5=50/125 M6=62.5/125 09=9/125 S=Specify |
05=0.5meter 10=1.0meter |
FP=FC/UPC FA=FC/APC SP=SC/UPC SA=SC/APC LP=LC/UPC LA=LC/APC S=Specify |
|
|
