| Brand Name: | GEZHI or OEM |
| Model Number: | MEMS-M-1x16- |
| MOQ: | 1pc |
| Price: | Negotiable |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T, Western Union |

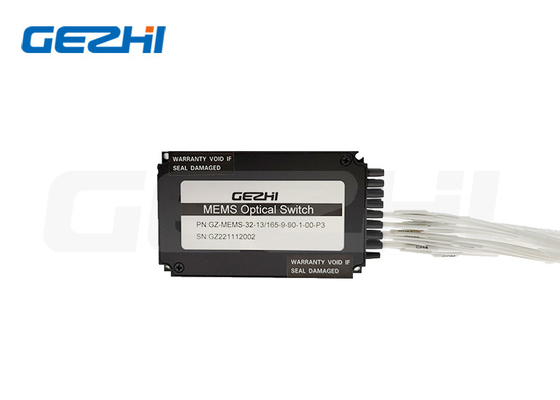

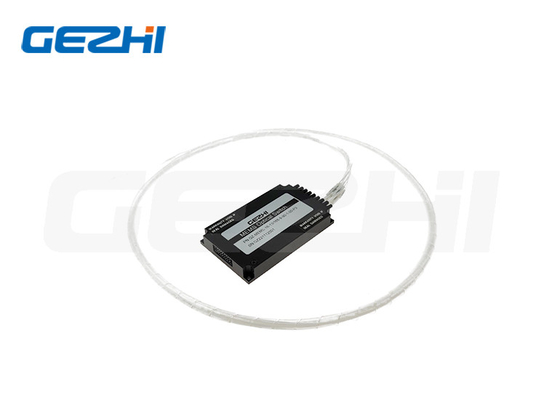

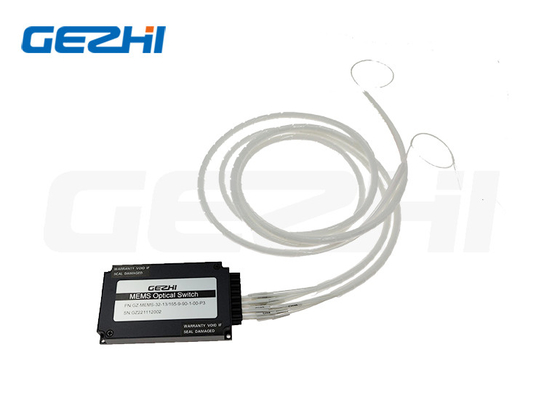

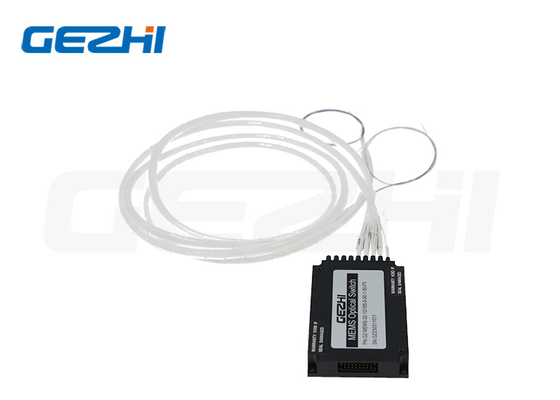

Product Overview of 1x16 1x32 Mems Optical Switch
Optical Network Singmode Multimode 1x16 1x32 Mems Optical Switches
1x16 1x32 MEMS Optical Switches Module
1x16 1x32 MEMS optical switchis based on micro-electro-mechanical system technology. It allows channel selection between one input fiber and N output fibers by rotating the mirror of MEMS chip.The switch is bi-directional .The optical switch offers highly reliable, durable, long-life operation in a compact package.
Features of 1x16 1x32 Mems Optical Switch
Features:
Wide Wavelength Range
Latching and Non-latching
Low Crosstalk
High Stability, High Reliability
Low Insertion loss
Epoxy-free on Optical Path
Applications:
Optical Singnal Routing
Network Test System
Optical Network
Transmitter and receiver protection
Protection/Restoration
Specifications of 1x16 1x32 Mems Optical Switch
| Parameters | Unit | Mems optical switch | |
| Operating Wavelength | nm | 1260~1650 for SM, 850/1310 for MM | |
| Insertion Loss | dB | N≤8 | ≤1.0 |
| 8<N≤16 | ≤1.2 | ||
| 16<N≤32 | ≤1.5 | ||
| 32<N≤64 | ≤1.7 | ||
| 64<N≤144 | ≤2.2 | ||
| 144<N≤256 | ≤2.4 | ||
| WDL | dB | ≤ 0.3 | |
| TDL | dB | ≤ 0.3 | |
| PDL | dB | ≤ 0.15 | |
| Return Loss | dB | SM ≥ 45, MM ≥ 30 | |
| Crosstalk | dB | SM ≥ 45, MM ≥ 30 | |
| Repeatability | dB | ≤ ±0.02 | |
| Switching Time | ms | ≤ 8 | |
| Durability | times | ≥ 10 billion | |
| Switching Mode | Non-latching | ||
| Power Supply | V | DC 5V ± 10% | |
| Operating Current | mA | N≤16 | ≤50 |
| 16<N≤64 | ≤250 | ||
| 64<N≤144 | ≤350 | ||
| 144<N≤256≤ 500 | ≤500 | ||
| Optical Power | mW | ≤ 500 | |
| Operating Temperature | °C | -20 ~ +85 | |
| Storage Temperature | °C | -40 ~ +85 | |
| Operating Humidity | % | 5 ~ 95 | |
| Package Dimension | mm | P1: 31x24x11 | N≤64, bare fiber |
| P2: 60x24x11 | N≤16, 0.9mm loose tube | ||
| P3: 90x55x12 | 16<N≤64, 0.9mm loose tube | ||
| P4: 100x100x12 | 64<N≤144, 0.9mm loose tube | ||
| P5: 110x141x12 | 144<N≤256, 0.9mm loose tube | ||
Odering Information of 1x16 1x32 Mems Optical Switch
| Type | Channel | Wavelength | Fiber Type | Fiber Diameter | Fiber Length | Connector |
|
GZ-MEMS optical switch |
01=1x1 02=1x2 ..... 16=1x16 ...... |
85=850nm 13=1310nm 14=1490nm 15=1550nm 1625=1625nm 1650=1650nm 13/15=1310/1550nm |
5=50/125 6=62.5/125 9=9/125 X=Others |
25=250um 90=900um 20=2.0mm 30=3.0mm X=Others |
1=1m 2=1.5m X=Others |
00=none LP=LC/UPC LA=LC/APC SP=SC/UPC SA=SC/APC FP=FC/UPC FA=FC/APC MP=MPO X=Customized |
FAQ
Q1:Can I have a sample order? What is your MOQ of 1x16 1x32 Mems Optical Switch Module?
|
|
