Product Overview of 1x8 Mems Optical Switch Module

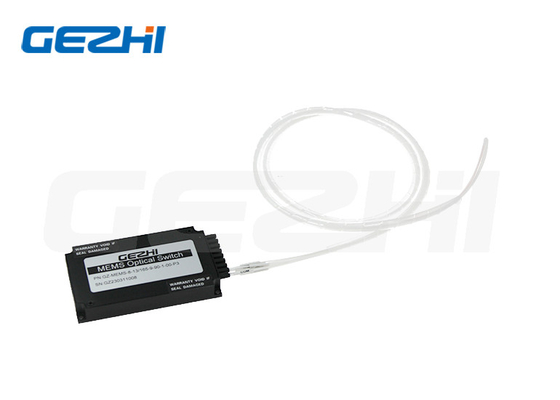

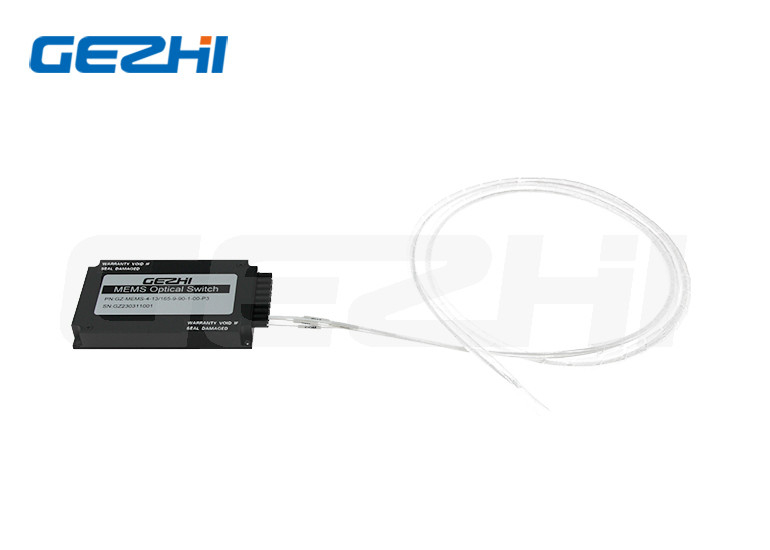

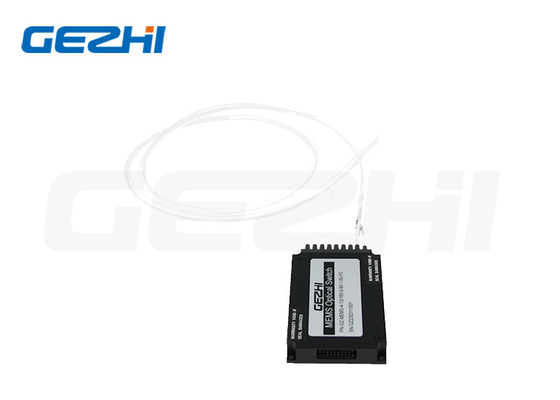

Multi Channel MEMS 1x8 Fiber Optical Switch Module
1x8 MEMS Optical Switches Module
Gezhi Photonics MEMS 1X8 Fiber Optical Switch is a compact, single mode or multimode fiber optical switch configurable for port counts up to 1x64.It utilizes the proprietary microelectromechanical system (MEMS) technology to achieve reliable optical performance and excellent durability; This MEMS optical switch is available in any 1XN size up to 1x64.
Features of 1x8 Mems Optical Switch Module
Features:
Low Crosstalk
Low Insertion loss
High Stability, High Reliability
Epoxy-free on Optical Path
Wide Wavelength Range
Latching and Non-latching
Applications:
Network Test System
Optical Network
Protection/Restoration
Transmitter and receiver protection
Optical Singnal Routing
Specifications of 1x8 Mems Optical Switch Module
| Parameters | Unit | MFSW-1×8 | |
| Operating Wavelength | nm | 1260~1650 for SM, 850/1310 for MM | |
| Insertion Loss | dB | N≤8 | ≤1.0 |
| 8<N≤16 | ≤1.2 | ||
| 16<N≤32 | ≤1.5 | ||
| 32<N≤64 | ≤1.7 | ||
| 64<N≤144 | ≤2.2 | ||
| 144<N≤256 | ≤2.4 | ||
| WDL | dB | ≤ 0.3 | |
| TDL | dB | ≤ 0.3 | |
| PDL | dB | ≤ 0.15 | |
| Return Loss | dB | SM ≥ 45, MM ≥ 30 | |
| Crosstalk | dB | SM ≥ 45, MM ≥ 30 | |
| Repeatability | dB | ≤ ±0.02 | |
| Switching Time | ms | ≤ 8 | |
| Durability | times | ≥ 10 billion | |
| Switching Mode | Non-latching | ||
| Power Supply | V | DC 5V ± 10% | |
| Operating Current | mA | N≤16 | ≤50 |
| 16<N≤64 | ≤250 | ||
| 64<N≤144 | ≤350 | ||
| 144<N≤256≤ 500 | ≤500 | ||
| Optical Power | mW | ≤ 500 | |
| Operating Temperature | °C | -20 ~ +85 | |
| Storage Temperature | °C | -40 ~ +85 | |
| Operating Humidity | % | 5 ~ 95 | |
| Package Dimension | mm | P1: 31x24x11 | N≤64, bare fiber |
| P2: 60x24x11 | N≤16, 0.9mm loose tube | ||
| P3: 90x55x12 | 16<N≤64, 0.9mm loose tube | ||
| P4: 100x100x12 | 64<N≤144, 0.9mm loose tube | ||
| P5: 110x141x12 | 144<N≤256, 0.9mm loose tube | ||
Odering Information of 1x8 Mems Optical Switch Module
| Type | Channel | Wavelength | Fiber Type | Fiber Diameter | Fiber Length | Connector |
| GZ-MEMS |
01=1x1 02=1x2 ..... 16=1x16 ...... |
85=850nm 13=1310nm 14=1490nm 15=1550nm 1625=1625nm 1650=1650nm 13/15=1310/1550nm |
5=50/125 6=62.5/125 9=9/125 X=Others |
25=250um 90=900um 20=2.0mm 30=3.0mm X=Others |
1=1m 2=1.5m X=Others |
00=none LP=LC/UPC LA=LC/APC SP=SC/UPC SA=SC/APC FP=FC/UPC FA=FC/APC MP=MPO X=Customized |
FAQ
