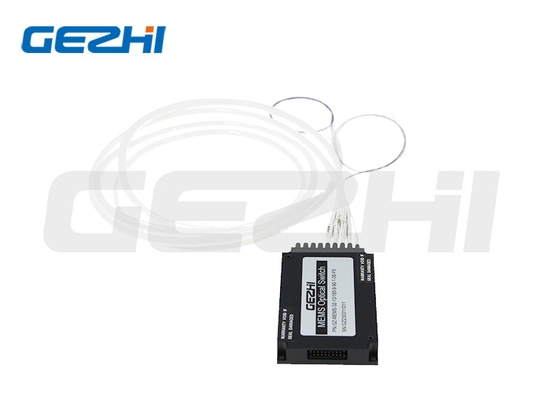

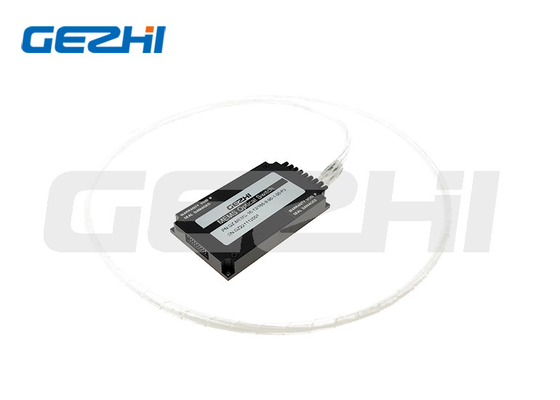

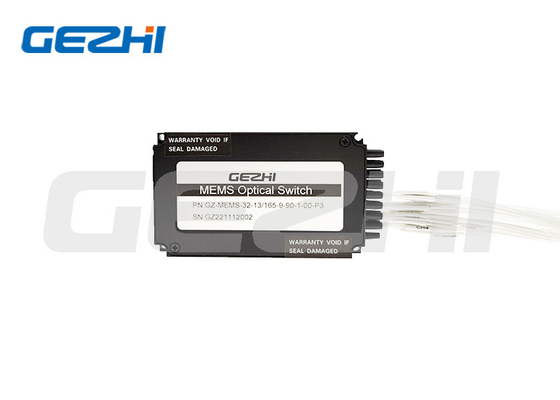

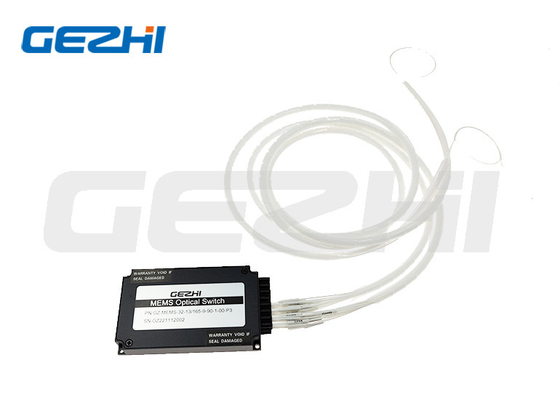

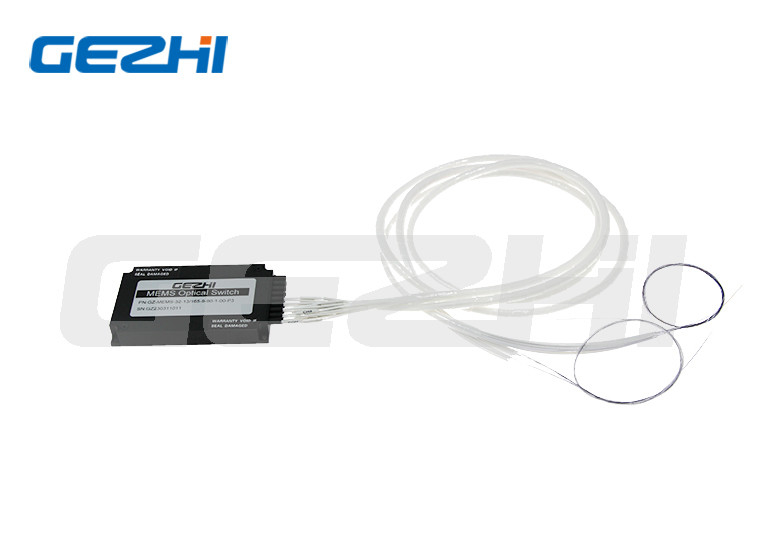

SM/MM 1x16 1x32 MEMS Optical Switch Module for PON Network
Product Description
Compact Structure
Fast Switching Time
Low Insertion Loss
High Reliability
Applications
PON Network
Protection
Instrumentation
Network Monitoring
Specifications
| Parameter | Single Mode |
| Wavelength range (nm) | 1240~1640 |
| Insertion loss (dB) | ≤2.0 (Typ 1.3) |
| Crosstalk (dB) | ≥ 60 (Typ 75) |
| Backreflection (dB) | ≥ 45 (Typ 55) |
| Polarisation Dependent Loss (dB) | ≤0.15 |
| Repeatability1 (dB) | ≤0.002 |
| Switch time (ms) | ≤1 (Typ 0.5) |
| Switching Voltage ( V ) | ≤5 |
| Fiber Pigtail (µm) | 9/125/900 |
| Durability (cycles) | no wear out |
| Power Consumption (mW) | ≤190 |
| Operation temperature(℃) | 0~70 |
| Storage temperature (℃) | -40~85 |
| Package Size (L x W x H) (mm) | 175 x 105 x 10 |
| Parameter | Multi-Mode |
| Wavelength range (nm) | 600~1700 |
| Insertion loss (dB) | ≤2.0 (Typ 1.5) |
| Crosstalk (dB) | ≥ 45 (Typ 55) |
| Backreflection (dB) | ≥ 35 (Typ 45) |
| Polarisation Dependent Loss (dB) | ≤0.3 |
| Switch time (ms) | ≤20 (Typ 2) |
| Switching Voltage ( V ) | ≤5 |
| Fiber Pigtail (µm) | 50/125/900 or 62.5/125/900 |
| Durability (cycles) | no wear out |
| Power Consumption (mW) | ≤150(Typ 75) |
| Operation temperature(℃) | 0~70 |
| Storage temperature (℃) | -40~85 |
| Package Size (L x W x H) (mm) | 175 x 105 x 10 |
Ordering Information
| A | B | C | D | E | F |
| Type | Wavelength | Fiber Length (m) | Fibre type | Fiber diameter | Connector |
| 1x16 1x32 Specify Custom |
1=850nm 2=1310nm 3=1490nm 4=1550nm 5=1625nm 6=1310/1550nm 7=850/1310nm S=Specify Custom |
0.5=0.5m 1.0=1.0m 1.5=1.5m S=Specify Custom |
9=SMF28,9/125 50=MM 50/125 62=MM 62.5/125 S=Specify Custom |
1=250um bare fibre 2=900um loose tube 3=2.0mm loose tube S=Specify Custom |
OO=None FP=FC/PC FA=FC/APC SP=SC/PC SA=SC/APC SP=ST/PC SA=ST/APC LP=LC/PC LA=LC/APC X=Others |
|
|
