| Brand Name: | GEZHI or OEM |
| Model Number: | MEMS-M-1x16- |
| MOQ: | 1pc |
| Price: | Negotiable |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T, Western Union |
Product Overview of 1x16 Mems Optical Switch
High quality 1x16 rack-mount Mems optical switch for Optical Network

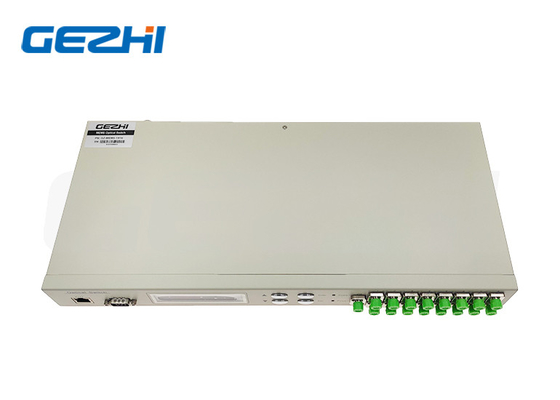

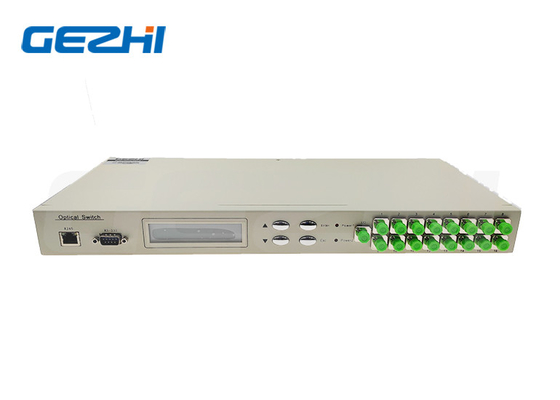

1x16 Rack-mount MEMS Optical Switches
Gezhi 1×16 MEMS Fiber optic switch connects optical channels by redirecting incoming optical signals into selected output fibers.We offers MEMS optical switches support wide band wavelength and are compact, fast switching, High stability and with high channel number configuration. Its widely used in MCS, OXC, IODF, OLM, OTDR or fiber sensing etc.
Features of 1x16 Mems Optical Switch
Features:
Low insertion loss,Fast switching time
Epoxy-free on Optical Path
Base on MEMS technology
High Stability,High Reliability
Single mode and Multi-mode
Applications:
R&D in Laboratory
Secure Communications
Optical reconfiguration
Network Security and Monitoring
Optical network protection/restoration
Specifications of 1x16 Mems Optical Switch
| Parameters | Unit |
MEMS-1×N (N≤16) Multi Mode |
|
| Operating Wavelength | nm | 850±30, 1310±30 | |
| Insertion Loss | dB | N≤12 | ≤1.0 |
| 13≤N≤16 | ≤1.2 | ||
| WDL | dB | ≤ 0.3 | |
| TDL | dB | ≤ 0.4 | |
| PDL | dB | ≤ 0.2 | |
| Return Loss | dB | ≥ 30 | |
| Crosstalk | dB | ≥30 | |
| Repeatability | dB | ≤ ±0.05 | |
| Switching Time | ms | ≤ 8 | |
| Durability | times | ≥ 10 billion | |
| Control Voltage | V | ≤ 60 | |
| Switching Mode | Non-latching | ||
| Optical Power | mW | ≤ 500 | |
| Operating Temperature | °C | -20 ~ +85 | |
| Storage Temperature | °C | -40 ~ +85 | |
| Operating Humidity | % | 5 ~ 95 | |
| Dimension | mm | N≤7 | Φ5.5×42 |
| 8≤N≤16 | Φ6.0×47 | ||
Odering Information of 1x16 Mems Optical Switch
| Type | Channel | Wavelength | Fiber Type | Fiber Diameter | Fiber Length | Connector |
| GZ-MEMS |
01=1x1 02=1x2 ..... 16=1x16 ...... |
85=850nm 13=1310nm 14=1490nm 15=1550nm 1625=1625nm 1650=1650nm 13/15=1310/1550nm |
5=50/125 6=62.5/125 9=9/125 X=Others |
25=250um 90=900um 20=2.0mm 30=3.0mm X=Others |
1=1m 2=1.5m X=Others |
00=none LP=LC/UPC LA=LC/APC SP=SC/UPC SA=SC/APC FP=FC/UPC FA=FC/APC MP=MPO X=Customized |
FAQ
Q1:Can I have a sample order? What is your MOQ of 1x16 Rack-mount Mems Optical Switch?
|
|
