| Brand Name: | GEZHI or OEM |
| Model Number: | MEMS-M-1x32- |
| MOQ: | 1pc |
| Price: | Negotiable |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T, Western Union |
Product Overview of 1x32 Mems Optical Switch
Factory price 1x32 rack-mount Mems optical switch for Network Test System

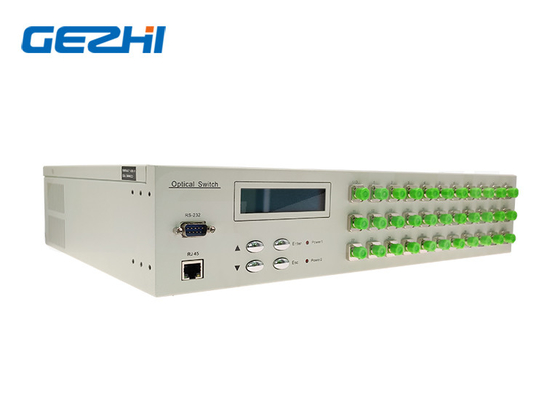

1x32 Rack-mount MEMS Optical Switches
Gezhi MEMS 1X32 Fiber Optical Switch is a compact, single mode or multimode fiber optical switch configurable for port counts up to 1x64.It utilizes the proprietary microelectromechanical system (MEMS) technology to achieve reliable optical performance and excellent durability; This MEMS optical switch is available in any 1XN size up to 1x64,and can be built as a 1x4,1X8,1X9,1X10,1X12,1X16,1X24,1X32,1X36,1X48,1X64 etc.
Features of 1x32 Mems Optical Switch
Features:
High Stability,High Reliability
Low insertion loss,Fast switching time
Single mode and Multi-mode
Epoxy-free on Optical Path
Base on MEMS technology
Applications:
Optical reconfiguration
Optical network protection/restoration
Network Security and Monitoring
R&D in Laboratory
Secure Communications
Specifications of 1x32 Mems Optical Switch
| Parameter | MEMS 1X32 Optical Switch |
| Wavelength range (nm) | 1250~1650 |
| Insertion loss (dB) | ≤2.5 (Typ 1.5) |
| Crosstalk (dB) | ≥ 50 (Typ 60) |
| Backreflection (dB) | ≥ 45 (Typ 55) |
| Polarisation Dependent Loss (dB) | ≤0.25 |
| Repeatability(dB) | 0.002 |
| Switch time (ms) | ≤1 (Typ 0.5) |
| Switching Voltage ( V ) | ≤5 |
| Fiber Pigtail (µm) | SMF-28 or 50/125/900 or 62/125/900 |
| Durability (cycles) | no wear out |
| Power Consumption (mW) | Typ :200 |
| Operation temperature(℃) | 0~70 |
| Storage temperature (℃) | -40~85 |
| Package Size (L x W x H) (mm) | 206 x 105 x 10 |
Odering Information of 1x32 Mems Optical Switch
| Type | Channel | Wavelength | Fiber Type | Fiber Diameter | Fiber Length | Connector |
| GZ-MEMS |
01=1x1 02=1x2 ..... 16=1x16 ...... |
85=850nm 13=1310nm 14=1490nm 15=1550nm 1625=1625nm 1650=1650nm 13/15=1310/1550nm |
5=50/125 6=62.5/125 9=9/125 X=Others |
25=250um 90=900um 20=2.0mm 30=3.0mm X=Others |
1=1m 2=1.5m X=Others |
00=none LP=LC/UPC LA=LC/APC SP=SC/UPC SA=SC/APC FP=FC/UPC FA=FC/APC MP=MPO X=Customized |
FAQ
Q1:Can I have a sample order? What is your MOQ of 1x32 Rack-mount Mems Optical Switch?
|
|
