| Brand Name: | GEZHI or OEM |
| Model Number: | 1x96 Channel AWG DWDM mux Demux Module |
| MOQ: | 1pc |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union |
Product Overview
|

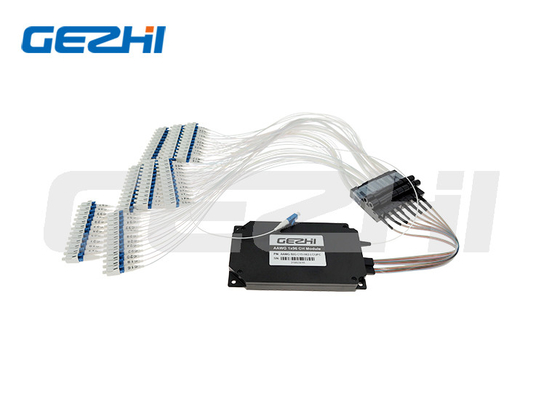

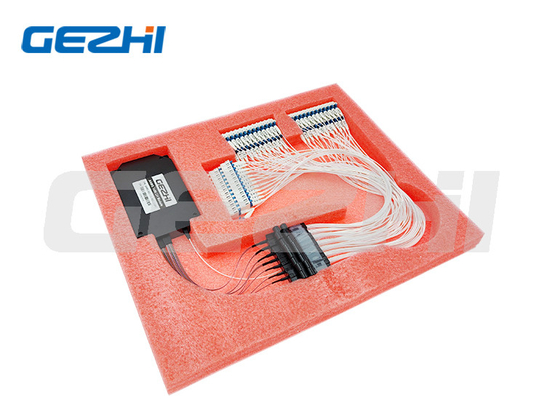

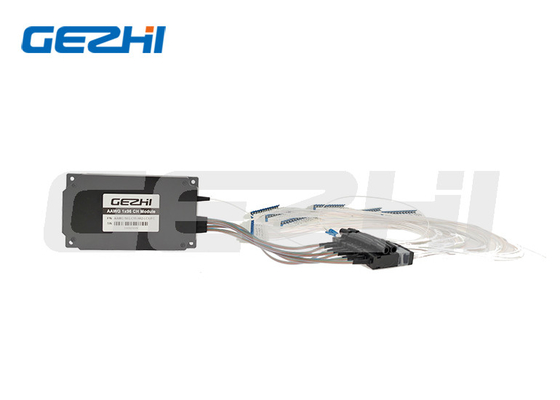

50GHz 96CH Athermal AWG DWDM Mux Demux
The 96CH Mux Demux is a high density, low loss and standalone passive optical module that provides excellent solution for infrastructure savings by aggregating up to 96CH DWDM channels at a single site. All 96CH channels are spread over the C-band per ITU-T 100GHz spacing between channels using high quality AAWG technology. It's perfectly suited to transport PDH, SDH / SONET, ETHERNET services over WWDM, CWDM and DWDM in optical metro edge and access networks. GEZHI Photonics Supply various type package like Metal box, Rackmount or customized Package.
|
FEATURES AT A GLANCE
| High density Channel |
|
Customized Package type
|
|
Single Fiber or Dual fiber available
|
|
High Stability & Reliablity
|
|
Low Insertion Loss
|
Technical Index
| Parameter | Unit | AAWG Module | ||||||||||
| Channel | CH | 32 | 40 | 48 | 80 | 96 | 32 | 40 | 48 | 80 | 96 | |
| Channel Spacing | GHz | 100 | 100 | 100 | 50 | 50 | 100 | 100 | 100 | 50 | 50 | |
| Chip Type | -- | Gaussian Type | Flat Top Type | |||||||||
| 1dB Channel Bandwidth | nm | >0.2 | >0.2 | >0.2 | >0.18 | >0.18 | >0.38 | >0.38 | >0.38 | >0.18 | >0.18 | |
| 3dB Channel Bandwidth | nm | >0.4 | >0.4 | >0.4 | >0.28 | >0.28 | >0.58 | >0.58 | >0.58 | >0.28 | >0.28 | |
| Insertion Loss | dB | <4.5 | <4.5 | <4.5 | <6.5 | <6.5 | <5.5 | <5.5 | <5.5 | <7.0 | <7.0 | |
| Adjacent Crosstalk | dB | >25 | >25 | >25 | >22 | >22 | >25 | >25 | >25 | >22 | >22 | |
| Non-adjacent Crosstalk | dB | >30 | >30 | >30 | >27 | >27 | >30 | >30 | >30 | >27 | >27 | |
| Total Crosstalk | dB | >22 | >22 | >22 | >20 | >20 | >22 | >22 | >22 | >20 | >20 | |
| Return Loss | dB | >40 | ||||||||||
| Ripple | dB | <0.7 | ||||||||||
| PDL | dB | <0.5 | ||||||||||
| PMD | ps | <0.5 | ||||||||||
| Chromatic Dispersion | Ps/nm | ±20 | ||||||||||
| Operating Temperature | ℃ | -5~+65 | ||||||||||
| Storage Temperature | ℃ | -40~+85 | ||||||||||
|
|
