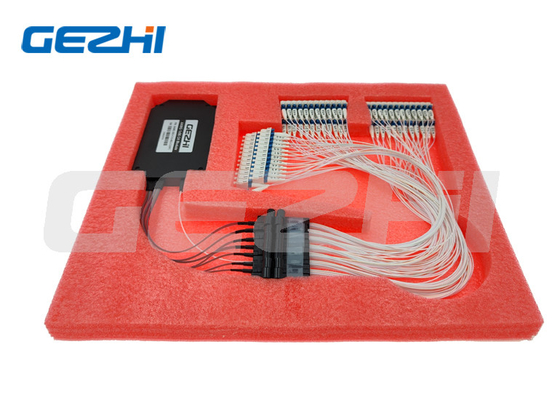

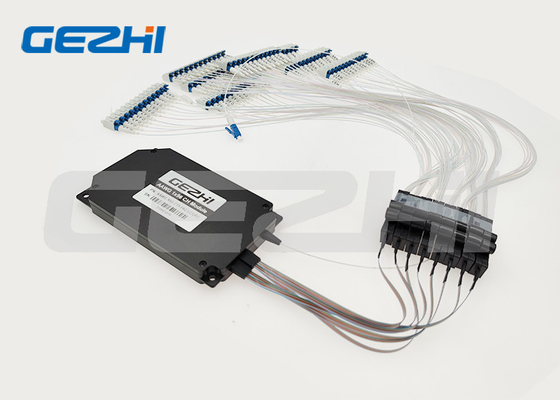

50GHz AAWG Multiplexer Demultiplexer Module Flat-top type C-band wavelength
The 50GHz AAWG Multiplexer Demultiplexer are based on silica on silicon technology, is designed for ITU channel spacing applications where no electrical power is required. This AAWG multiplexer demultiplexer operates at 50GHz spacing ITU Grid DWDM wavelengths from C-band C15 to H62 total 96 channels, customized wavelength is available. The low cost and high performance make it the ideal solution for metro and long-haul DWDM applications.
GEZHI 50GHz 96ch AAWG Multiplexer demultiplexer is a scalable, high density and standalone passive optical module that perfectly suited to PON Networks, DWDM Transmission, Metro Area Networks, Long-haul Networks, Building Blocks for VMUX and Building blocks for ROADM applications.
Features of 50GHz AAWG Multiplexer Demultiplexer Module
Wide pass band
Low Insertion Loss
High Channel Isolation
High Stability and reliability
High Capacity For Data Center Applications
Innovative craftsmanship for maximum performance with high degree of protection
Based on a athermal AWG technology with Flat-top shaped pass bands
Specification of 50GHz 96CH AAWG Multiplexer Demultiplexer Module
| Parameter | Specifications | Unit | Comment | ||
| Min | Max | ||||
| Input Channel | 1 | ||||
| Output Channel | 96 | 80, 96 channels available | |||
| Channel Spacing | 50 | GHz | |||
| 1dB Bandwidth |
0.18 |
nm | Flat-Top Type | ||
| 3dB Bandwidth |
0.28 |
nm | |||
| I.L | 7 | dB | Worst case in ITU passband | ||
| I.L UNI. | 1 | dB | |||
| Ripple | 0.7 | dB | Loss variation in ITU passband | ||
| PDL | 0.5 | dB | Max. value in ITU passband | ||
| Adjacent Crosstalk | 22 | dB | Worst case in ITU passband | ||
| Non-Adjacent Crosstalk | 27 | dB | Worst case in ITU passband | ||
| Total Crosstalk | 20 | dB | Cumulative crosstalk of all other channels | ||
| Return Loss | 40 | dB | |||
| Maximum Continuous Optical Power | 250 | mW | Maximum input optical power | ||
| Chromatic Dispersion(CD) | -20 | +20 | ps/nm | ||
| PMD | 0.5 | ps | |||
Optical signal transmission diagram of 50GHz 96CH AAWG Multiplexer Demultiplexer Module
More picture of 50GHz 96CH AAWG Multiplexer Demultiplexer Module
FAQ of 50Ghz 96CH AAWG Multiplexer Demultiplexer module.
Q: Are you trading company or manufacturer?
A: We are original manufacturer Of 50Ghz 96CH AAWG Multiplexer Demultiplexer. We can do OEM/ODM business.
Q: Which technology of this 50Ghz 96CH AAWG Multiplexer Demultiplexer use?
A: We use silica-on-silicon planar technology.
Q: What's the difference of flat-top with guassian type of 50Ghz 96CH AAWG Multiplexer Demultiplexer ?
A: The wavelength bandwidth of flat-top is wider than gaussian type, but the insertion loss of gaussian type is lower than flat-top.
Q: How long is your delivery time?
A: General delivery time: 14 days.
Q: What is your terms of payment?
A: 100% T/T inadvance.
Q: How can I get your catalogue and price list?
A: Please let us know your email or contact us from website directly for our catalogue and price list;
Any questions,please feel free to contact us,we will provide quality services for you
|
|
