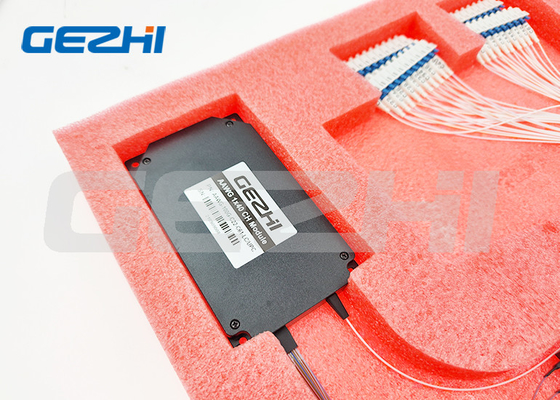

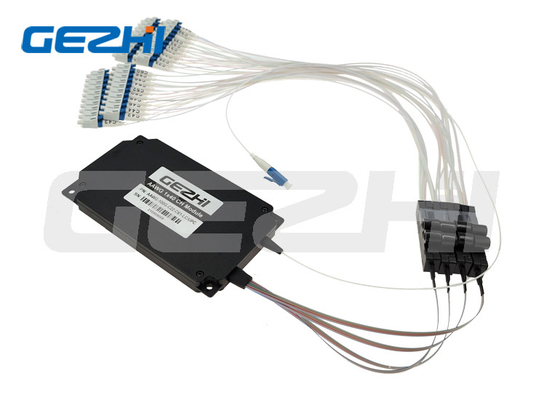

100G 48 Channel Flat-top AAWG Mux Demux for DWDM transmission
This 100G 48CH Athermal AWG (Athermal Arrayed Waveguide Grating) Mux / DeMux Modules are flat-top type and part of a series of high performance products based on silica-on-silicon planar technology. The 48CH AAWG mux / demux module support ITU grid C-band wavelength and Electrical Power is Not Required.
This 48CHannel Flat-top AAWG mux demux module can be pakcage with metal box, 19" 1U rackmount or customized package.
|
Features Wide-Band design - maximizes uniformity in passband |
Applications Optical signal processing |
Specification of 100Ghz 48CH Flat-top AAWG Mux Demux
| Parameter | Specifications | Unit | Comment | ||
| Min | Max | ||||
| Input Channel | 1 | ||||
| Output Channel | 48 | 32, 40 channels available | |||
| Channel Spacing | 100 | GHz | |||
| Reference Passband | -12.5 | 12.5 | GHz | ||
| Wavelength Accuracy | -50 | 50 | pm | Relative to ITU Grid | |
| 1dB Bandwidth |
0.4 |
nm |
F-Flat top Type |
||
| 3dB Bandwidth |
0.6 |
nm | |||
| I.L | 5 | dB | Worst case in ITU passband | ||
| I.L UNI. | 1 | dB | |||
| Ripple | 0.7 | dB | Loss variation in ITU passband | ||
| PDL | 0.5 | dB | Max. value in ITU passband | ||
| Adjacent Crosstalk | 25 | dB | Worst case in ITU passband | ||
| Non-Adjacent Crosstalk | 30 | dB | Worst case in ITU passband | ||
| Total Crosstalk | 22 | dB | Cumulative crosstalk of all other channels | ||
| Return Loss | 40 | dB | |||
| Maximum Continuous Optical Power | 250 | mW | Maximum input optical power | ||
| Chromatic Dispersion(CD) | -20 | +20 | ps/nm | ||
| PMD | 0.5 | ps | |||
FAQ of 100Ghz 48CH Flat-top AAWG Mux Demux
Q: Are you trading company or manufacturer?
A: We are original manufacturer Of 100Ghz 48CH Flat-top AAWG Mux Demux. We can do OEM/ODM business.
Q: Which technology of this 100GHz 48CH Flat-top AAWG Mux Demux use?
A: We use silica-on-silicon planar technology.
Q: What's the difference of flat-top with guassian type of 100Ghz 48CH AAWG DWDM mux Demux?
A: The wavelength bandwidth of flat-top is wider than gaussian type, but the insertion loss of gaussian type is lower than flat-top.
Q: How long is your delivery time?
A: General delivery time: 7~14 days.
Q: What is your terms of payment?
A: 100% T/T inadvance.
Q: How can I get your catalogue and price list?
A: Please let us know your email or contact us from website directly for our catalogue and price list;
Any questions,please feel free to contact us,we will provide quality services for you
|
|
