| Brand Name: | GEZHI or OEM |
| Model Number: | GZ-VOA |
| MOQ: | 1pc |
| Price: | Negotiable |
| Delivery Time: | 2-7 work days |
| Payment Terms: | T/T, Western Union |

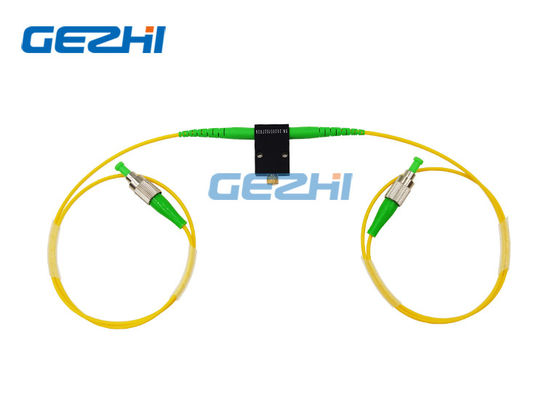

Ultra low Loss VOA In-line Variable Optical Attenuator

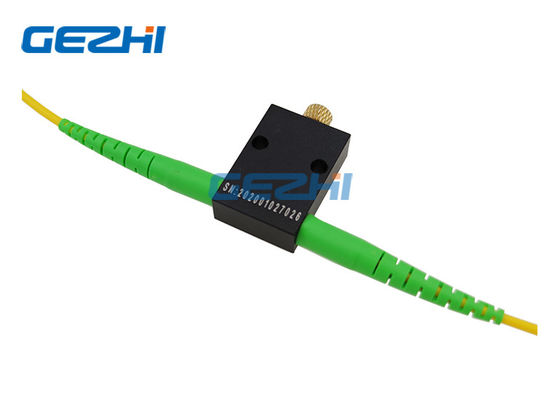

GEZHI's VOA is tuned to a micrometric screw which allows an excellent repeatability with a wide attenuation range from 0.6 to 60dB. Its also with a ultra low loss than 0.6dB with 1310nm or 1550nm +/-40nm. The Optical Variable Attenuators provided by GEZHI Photonics Co.,Ltd has been designed to be used within the context of telecommunications and instrumentation applications. However, beyond those areas, our band held product leads to other various applications.
Furthermode, GEZHI can provide fixed attenuators. Those attenuators were designed to a technique entirely based on optical fibers which allows a very good behaviour towards power. Also customized VOA is available like Multimode VOA, MEMS VOA, High Power VOA etc.
Features
Wide attenuation range
High precision
Low original loss
Applications
Optics lab
Compact Size
Fiber communication on system test
Optical passive component test
Specification
|
Type Parameter |
1060nm | 1310 OR 1550nm | Dual window |
| Wavelength (nm) | 1060 ± 40 | 1550 ± 40 | 1310 ± 40 & 1550 ± 40 |
| Attenuation range (dB) | 1 ~ 60 | 0.6 ~ 60 | 0.8 ~ 60 |
| Original loss (dB) | ≤1.0 | ≤0.6 | ≤0.8 |
| Precision (dB) | 0.02 | ||
| Return loss (dB) | ≥50 | ||
| PDL (dB) | ≤0.15 | ||
| Operating temperature (℃) | 0 ~ +70 | ||
| Storage temperature (℃) | -40 ~ +85 | ||
Note: Output connector can be made on customer’s request.
Product Ordering Information
CVOA—①—②—③—④—⑤
⑤= Connector:FC/UPC, FC/APC etc.
④= Pigtail type: 0=250μm, 1=900μm, 4=others
③=fiber type: 0=SMF-28e, 1= HI1060, 4=others
②=Wavelength:106=1060nm, 155=1550nm, 1315=1310&1550nm etc.
①=Type: C=Collimator
|
|
