| Brand Name: | GEZHI or OEM |
| Model Number: | 32CH-AAWG-S |
| MOQ: | 1pc |
| Price: | Negotiable |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T, Western Union |
Bidirectional 32CH Athermal AWG module DWDM Mux or Demux Single Fiber
Gezhi’s Bidirectional 32CH Athermal AWG Module DWDM Mux or Demux is a low loss, high density and standalone passive optical module. It is based on Athermal Arrayed Waveguide Grating with Gaussian Monolithic Technology. The Bidirectional 32CH Athermal AWG Module offers an ultra low-loss (Max: 3.5dB) and high channel isolation WDM solution for metro access and data centers applications. this Bidirectional 32CH Athermal AWG module ease of fiber handling, long-term reliability and excellent channel isolation in a 1U 19" Rackmount. The Bidirectional 32CH Athermal AWG Module built-in Mux in one unit, working on single network fibers
Features
High Channel Isolation
No power required
Ultral Low Insertion Loss
Standalong 19" 1U Rackmount
Applications
Wavelength selective routing
Metro and long haul Networks
WDM transmission
Optical signal processing
Specification
| Parameters | Conditions | Specifications | Units | ||
| Min. | Max. | ||||
| Operating Temperature | Operating | -5 | 65 | oC | |
| Operating Humidity | Operating | 5 | 95 | %RH | |
| Storage Temperature | Non_Operating | -40 | +85 | oC | |
| Storage Humidity | Non_Operating | 5 | 95 | %RH | |
| OPTICAL SPECIFICATION | AWG GAUSSIAN AAWG | ||||
| Parameters | Condition | Specs | Units | ||
| Min | Type | Max | |||
| Number of Channels | 1-1×32 | ||||
| Number Channel Spacing | 100GHz | 100 | GHz | ||
| Cha. Center Wavelength | ITU frequency. | C –band | nm | ||
| Clear Channel Passband | ±0.1 | nm | |||
| OPTICAL SPECIFICATIONS | |||||
| Parameters | Condition | Specs | Units | ||
| Min | Type | Max | |||
| Wavelength Stability | Maximum range of the wavelength error of all channels and temperatures in average polarization. | ±0.05 | nm | ||
| -1 dB -1 dB Channel Bandwidth | Clear channel bandwidth defined by passband shape. For each channel | 0.24 | nm | ||
| -3 dB -3 dB Channel Bandwidth | Clear channel bandwidth defined by passband shape. For each channel | 0.43 | nm | ||
| Optical Insertion Loss at ITU grid | Defined as the minimum transmission at ITU wavelength for all channels. For each channel, at all temperatures and polarizations. | 3.2 | 3.5 | dB | |
| Adjacent Channel Isolation | Insertion loss difference from the mean transmission at the ITU grid wavelength to the highest power, all polarizations, within the ITU band of the adjacent channels. | 30 | dB | ||
| Non-Adjacent, Channel Isolation | Insertion loss difference from the mean transmission at the ITU grid wavelength to the highest power, all polarizations, within the ITU band of the nonadjacent channels. | 40 | dB | ||
| Total Channel Isolation |
Total cumulative insertion loss difference from the mean transmission at the ITU grid wavelength to the highest power, all polarizations, within the ITU band of all other channels, including adjacent channels. |
33 | dB | ||
| Insertion Loss Uniformity | Maximum range of the insertion loss variation within ITU across all channels, polarizations and temperatures. | 0.8 | 1.0 | dB | |
| Insertion Loss Ripple |
Any maxima and any minima of optical loss across ITU band, excluding boundary points, for each channel at each port |
0.4 | 0.5 | dB | |
| Directivity | Ratio of reflected power out of any channel (other than channel n)to power in from the input channel n | 50 | dB | ||
| Optical Return loss | Input & output ports | 40 | dB | ||
| PDLPolarization Dependent Loss in Clear Channel Band | Worst-case value measured in ITU band | 0.3 | 0.5 | dB | |
| Polarization Mode Dispersion | 0.5 | ps | |||
| Maximum Optical Power | 23 | dBm | |||
| MUXDEMUX input output Monitoring range | -35 | +23 | dBm | ||
Ordering Information
| AWG | X | XX | X | XX | X | XX |
| Channel Spacing | Number of Channels | Configuration | 1st Channel | Package Type | In/Out Connector | |
| 1=100GHz |
32=32Channel 40=40 Channel 44=44 Channel 48=48 Channel
|
S=Single Fiber D=Dual Fiber |
21=Ch21 …… 34=Ch34 …… 50=Ch50 …… |
RU=19” 1U Rackmount |
0=None 1=FC/APC 2=FC/PC 3=SC/APC 4=SC/PC 5=ST/PC 6=ST/APC 7=LC/PC 8=LC/APC S=Specify |

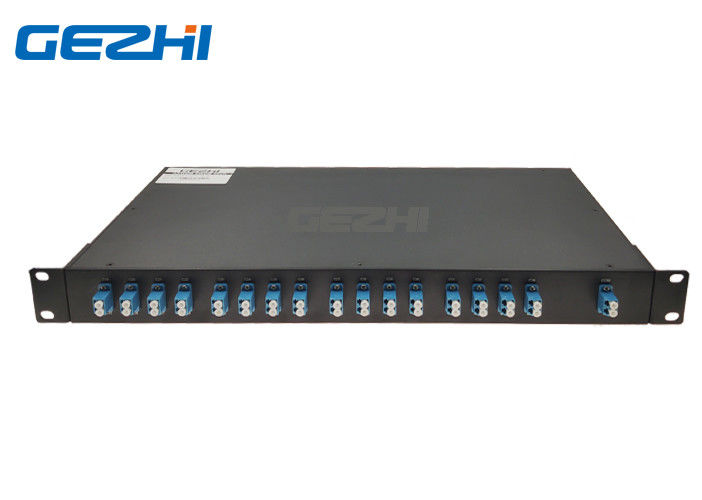

32CH AAWG Module Package
Bidirectional 32CH AAWG Module Single Fiber
|
|
