C-band 96-ch 50GHz Athermal AWG Mux/Demux Module with Gaussion Type
GEZHI 50Ghz DWDM AAWG (Athermal Arrayed Waveguide Grating) device, based on silica on silicon technology, is designed for ITU channel spacing applications where no electrical power is required. It operates at 50GHz or 100GHz channel spacing ITU Grid DWDM wavelengths from 1526nm to 1565nm. The AAWG DWDM can be used to replace the traditional TFF (thin film filter) DWDM products for cases where no power is available. The low cost and high performance make it the ideal solution for metro and long-haul DWDM applications. GEZHI provides a series of customized AAWG DWDM MUX/DEMUX devices packaged in 19" 1U rack mount to meet different requirements on spectrum shape , port configuration (1310nm and monitoring ports available), operating wavelength, fiber type, fiber length, input connector, and output connector.
Features
Wide pass band
Low Insertion Loss
High Channel Isolation
High Stability and reliability
Applications
Access Network
WDM Network
Telecommunication
Specification
| Parameter | Specifications | Unit | Comment | ||
| Min | Max | ||||
| Input Channel | 1 | ||||
| Output Channel | 96 | 80, 96 channels available | |||
| Channel Spacing | 50 | GHz | |||
| 1dB Bandwidth |
0.18 |
nm | Gaussion Type | ||
| 3dB Bandwidth |
0.28 |
nm | |||
| I.L | 7 | dB | Worst case in ITU passband | ||
| I.L UNI. | 1 | dB | |||
| Ripple | 0.7 | dB | Loss variation in ITU passband | ||
| PDL | 0.5 | dB | Max. value in ITU passband | ||
| Adjacent Crosstalk | 22 | dB | Worst case in ITU passband | ||
| Non-Adjacent Crosstalk | 27 | dB | Worst case in ITU passband | ||
| Total Crosstalk | 20 | dB | Cumulative crosstalk of all other channels | ||
| Return Loss | 40 | dB | |||
| Maximum Continuous Optical Power | 250 | mW | Maximum input optical power | ||
| Chromatic Dispersion(CD) | -20 | +20 | ps/nm | ||
| PMD | 0.5 | ps | |||
Drawing

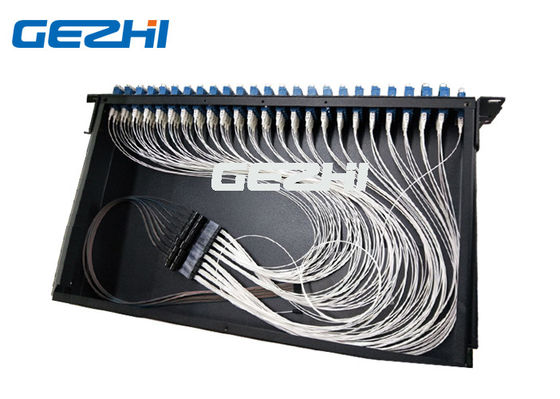

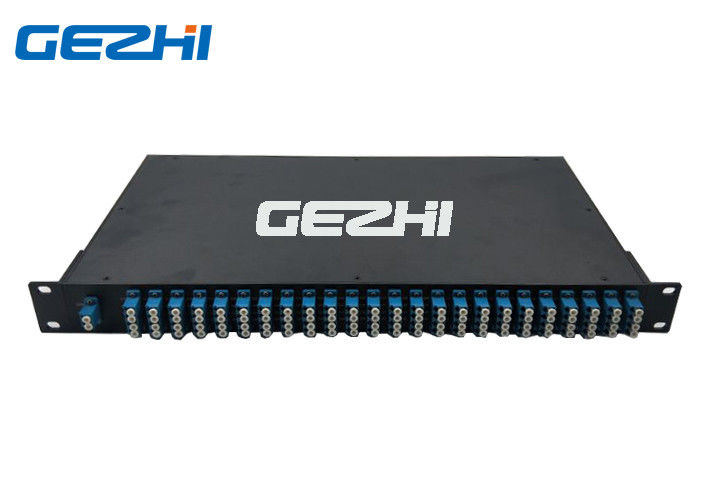

Package picture
|
|
